Forklift · Linde

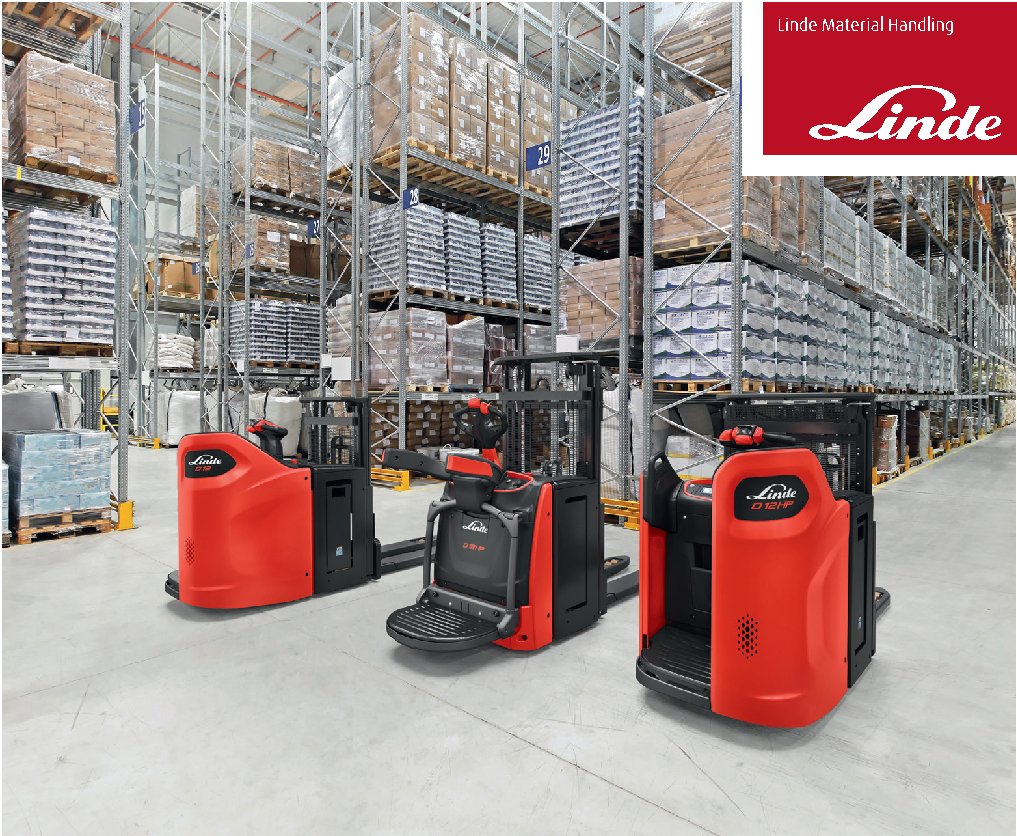

Linde D12HP SP Specs
Quick-reference specifications for the Linde D12HP SP forklift, from the manufacturer’s spec sheet and published specifications.
Performance 5 specs
| Travel Speed (no load) | 8.7 mph (14 km/h) |
|---|---|
| Travel Speed (with 2 pallets) | 4.7 mph (7.5 km/h) |
| Lifting Speed (with load) | 0.2 m/s |
| Lifting Speed (without load) | 0.11 m/s |
| Lowering Speed (with load) | 0.3 m/s |
Dimensions 9 specs
| Tyre size, front | Ø 254 × 102 |
|---|---|
| Transport Length | 8.16 ft (2.489 m) |
| Transport Width | 31.5 in (0.79 m) |
| Transport Height | 4.31 ft (1.315 m) |
| Mast Closed Height | 4.31 ft (1.315 m) |
| Lifting Height | 5.16 ft (1.574 m) |
| Free Lift | 45.1 in (1.145 m) |
| Load Centre Distance | 23.6 in (600 mm) |
| Overall Width | 31.5 in (800 mm) |
Weight 4 specs
| Own Weight (unladen) | 2,976 lb (1.35 t) |
|---|---|
| Battery Weight | 650 lb (0.295 t) |
| Axle Load (front with load) | 2,883 lb (1,308 kg) |
| Axle Load (rear with load) | 2,763 lb (1,253 kg) |
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A,B,C,no | 43 535 B/3PzS |
|---|---|
| Traction Motor Power | 4.08 hp (3 kW) |
| Hoist Motor Power | 2.30 hp (1.7 kW) |
| Motor Type | 3-phase AC electric |
Hydraulics / Fluids 1 spec
| Battery Voltage | 24 V |
|---|
