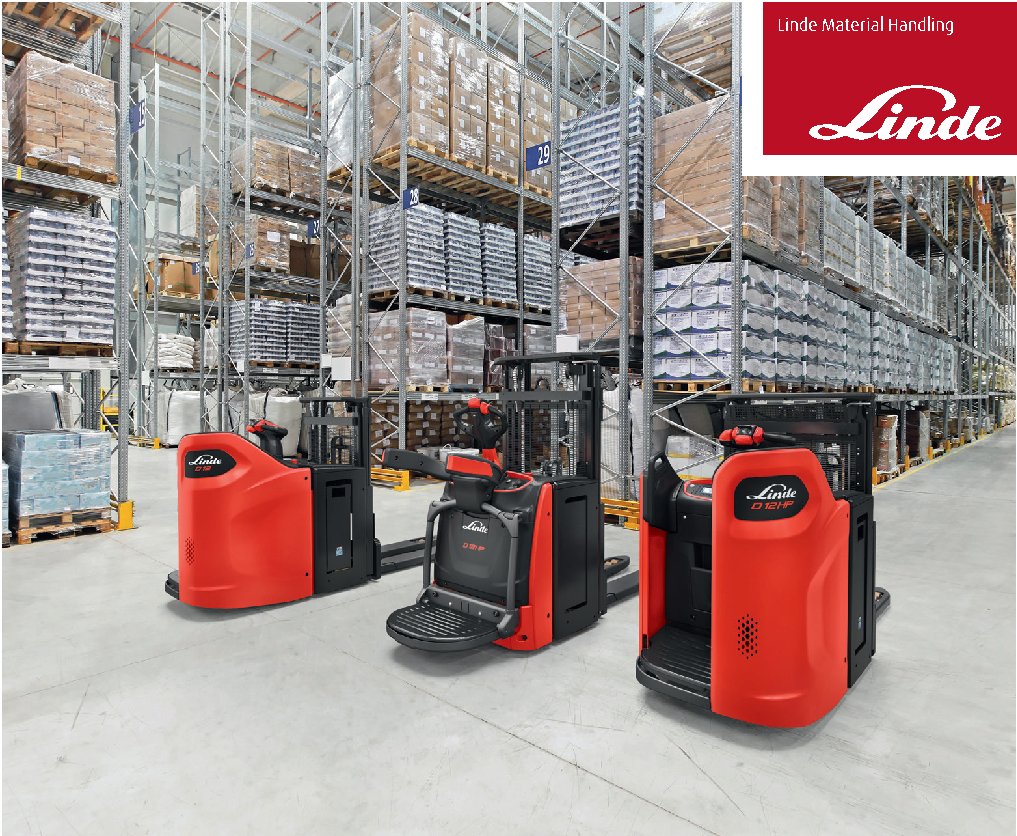

Linde D12HP AP Specs
Quick-reference specifications for the Linde D12HP AP forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Max Travel Speed (without load) | 8.7 mph (14 km/h) |
|---|---|
| Max Travel Speed (with single load) | 6.84 mph (11 km/h) |
| Max Travel Speed (with double load) | 4.66 mph (7.5 km/h) |
| Lifting Speed (loaded) | 0.11 m/s to 0.2 m/s |
| Lifting Speed (unloaded) | 0.2 m/s to 0.27 m/s |
| Lowering Speed (loaded) | 0.3 m/s |
| Turning Radius (inner) | 86.4 in (2,194 mm) |
| Turning Radius (outer) | 89.1 in (2,264 mm) |
Dimensions 14 specs
| Tyre size, front | Ø 254 × 102 |
|---|---|
| Overall Length | 97.2 in (2,470 mm) |
| Overall Width | 31.5 in (800 mm) |
| Transport Length | 81.2 in (2.061 m) |
| Transport Width | 31.1 in (0.79 m) |
| Transport Height | 51.8 in (1.315 m) |
| Lifting Height (max mast raised) | 115.91 in (2,944 mm) |
| Lifting Height (max lift height) | 95.43 in (2,424 mm) |
| Height of Mast (lowered) | 65.6 in (1,665 mm) |
| Free Lift | 45.1 in (1,145 mm) |
| Fork Width | 7.1 in (180 mm) |
| Fork Length | 45.28 in (1,150 mm) |
| Fork Thickness | 2.8 in (71 mm) |
| Fork Spacing | 22.05 in, 26.77 in (560 mm, 680 mm) |
Weight 1 spec
| Total Weight (alternative source) | 2,971.83 lb (1,348 kg) |
|---|
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A,B,C,no | 43 535 B/3PzS |
|---|---|
| Traction Motor | 4.08 hp (3 kW) |
| Hoist Motor | 2.31 hp (1.7 kW) |
| Hoist Motor (alternative spec) | 3.54 hp (2.6 kW) |
Hydraulics / Fluids 1 spec
| Battery Type | 24 V |
|---|
