Forklift · Linde

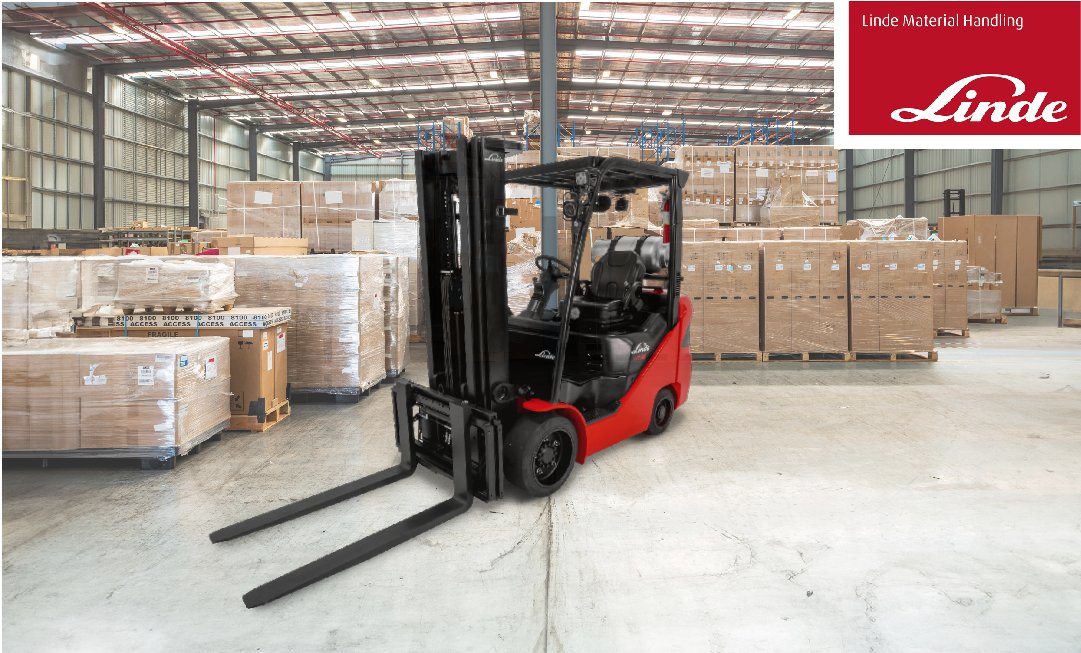

Linde HT25CT Specs
Quick-reference specifications for the Linde HT25CT forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability
- 26.2%
Performance 10 specs
| Load Capacity | 5,000 lb (2,268 kg) |
|---|---|
| Load Center | 24 in (610 mm) |
| Travel Speed (Full Load) | 11.25 mph (18 km/h) |
| Lifting Speed (Full Load) | 114 fpm (0.58 m/s) |
| Lowering Speed (Full Load) | 90 fpm (0.46 m/s) |
| Turning Radius (Outside) | 81.7 in (2.08 m) |
| Turning Radius (Inside) | 21.9 in (556 mm) |
| Gradeability | 26.2% |
| Tilt Range Forward | 6° |
| Tilt Range Backward | 5° |
Dimensions 11 specs
| Overall Length | 133.9 in (3,401 mm) |
|---|---|
| Overall Width | 41.8 in (1,061 mm) |
| Length to Fork Face | 91.9 in (2,333 mm) |
| Overhead Guard Height | 83.9 in (2,130 mm) |
| Wheelbase | 59.1 in |
| Underclearance (Mast) | 3.86 in (98 mm) |
| Underclearance (Wheel Center) | 4.4 in (112 mm) |
| Carriage Width | 38.6 in |
| Tread Width (Front/Rear) | 34.7 in / 35.8 in |
| ForkSize(TxWxL) | 1.5 x 4 x 48 in |
| Basic Right-Angle Stack | 154.3 in (3,919 mm) |
Weight 3 specs
| Total Weight | 9,215 lb (4,180 kg) |
|---|---|
| Weight Distribution (Full Load Front/Rear) | 12,323 lb / 1,902 lb |
| Weight Distribution (No Load Front/Rear) | 3,210 lb / 6,005 lb |
Power / Engine 5 specs
| Engine Make/Model | IMPCO 2.5 L iVCT |
|---|---|
| Engine Power | 63 hp SAE (47 kW) |
| Number of Cylinders | 4 |
| Piston Displacement | 152.6 cu in (2.5 L) |
| Sound Level (ANSI B56.11.5) | 80 dB (A) |
Hydraulics / Fluids 2 specs
| Auxiliary Hydraulic Max Operating Pressure | 2,600 psi |
|---|---|
| Auxiliary Hydraulic Max Flow Rate | 18 gpm |
