Forklift · Linde

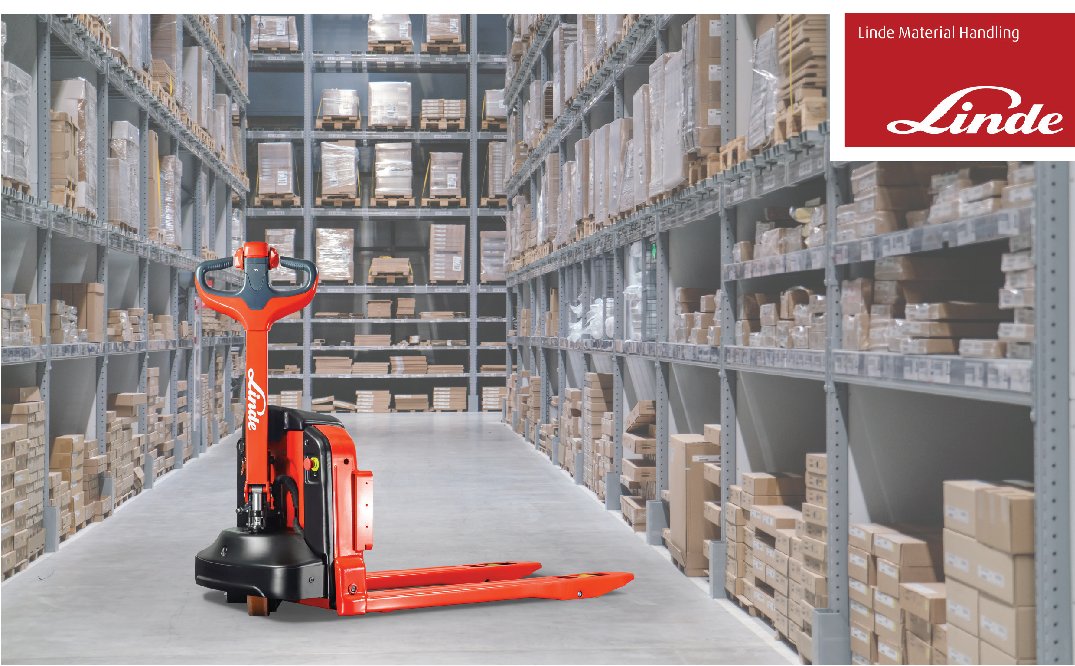

Linde MT18 Specs
Quick-reference specifications for the Linde MT18 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 4000 lb1800 kg
- Maximum gradeability, laden / unladen
- 6 / 16 %
Performance 10 specs
| Rated capacity | 4000 lb (1800 kg) |
|---|---|
| Turning radius | 54 in (1370 mm) |
| Travelling speed, with / without load | 3.1 / 3.4 mph (5 / 5.5 km/h) |
| Lifting speed, with / without load | 3.9 / 4.9 ft/s (.020 / .025 m/s) |
| Lowering speed, with / without load | 12.7 / 5.91 fpm (.065 /.030 m/s) |
| Maximum gradeability, laden / unladen | 6 / 16 % |
| Acceleration time with / without load | 10.78 / 9.88 S |
| Service brake | Electric |
| Type of drive control | DC |
| Noise level | < 70 dB (A) |
Dimensions 15 specs
| Load center distance | 24 in (600 mm) |
|---|---|
| Load distance, center of drive axle to fork | 35.2 / 37.8 in (894 / 960 mm) |
| Wheelbase | 45.5 / 48 in (1155 / 1120 mm) |
| Tire type | PU / PU |
| Tire size, rear | 2.9 x 3.46 in (74 x 88 mm) |
| Lift | 4.5 in (115 mm) |
| Height of tiller arm in driving position, min / max | 25/46 in (650/1170 mm) |
| Fork height, lowered | 3.15 in (80 mm) |
| Overall lengh | 61.8 in (1570 mm) |
| Length to fork face | 15.7 in (400 mm) |
| Overall width | 27.4 in (695 mm) |
| Distance between fork-arms | 27 in (685 mm) |
| Ground clearance with load, center of wheelbase | 1.18 in (30 mm) |
| Aisle width, 1000 × 1200 mm pallet crosswise | 82 in (2061 mm) |
| Aisle width, 800 × 1200 along forks | 86 in (2175 mm) |
Weight 3 specs
| Service weight | 374 lb (170 kg) |
|---|---|
| Axle loading laden, front/front | 1454 / 2880 lb (661 / 1309 kg) |
| Axle loading without load, front/rear | 286 / 88 lb (130 / 40 kg) |
Power / Engine 4 specs
| Power unit | 1133-03 |
|---|---|
| Lift motor rating | 0.9 kW |
| Battery voltage, nominal capacity K5 | 48/30 V / Ah |
| Battery weight | 31 lb (14 kg) |
