Forklift · Linde

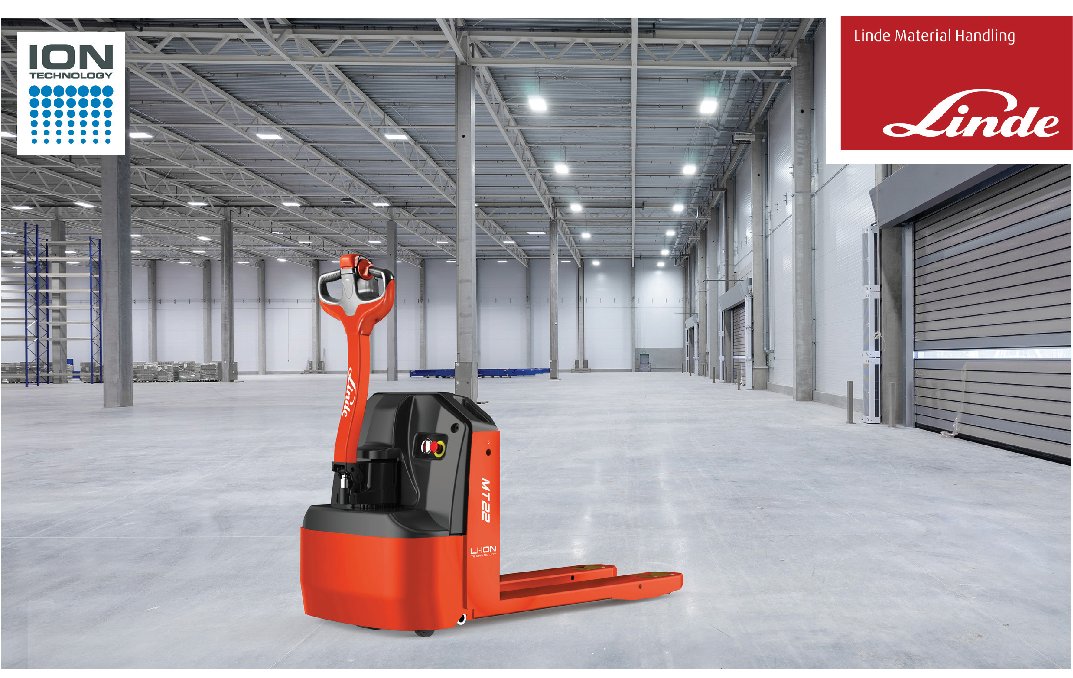

Linde MT22 Specs
Quick-reference specifications for the Linde MT22 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity/rated load
- 4,500 lb2,041 kg
Performance 9 specs
| Rated capacity/rated load | 4,500 lb (2,041 kg) |
|---|---|
| Turning radius | 51.96 in (1320 mm) |
| Travel speed, loaded/unloaded | 3.4/3.7 mph (5.5/6 km/h) |
| Lift speed, loaded/unloaded | 4.33 fpm (0.022 m/s) |
| Lowering speed, loaded/unloaded | 7.67 fpm (0.039 m/s) |
| Max. grade-ability, loaded/unloaded | 8/16 % |
| Service brake | Electromagnetic |
| Steering design | Mechanical |
| Sound pressure level LpAZ (at the driver’s seat) | 74 dB (A) |
Dimensions 17 specs
| Load center distance | 23.6 in (600 mm) |
|---|---|
| Load distance, center of drive axle to fork | 38.6 in (982 mm) |
| Wheelbase | 51.1 in (1300 mm) |
| Tire type | Polyurethane |
| Tire size, front | 9.05×2.95 in (230/75 mm) |
| Tire size, rear | 3.35×3.14 in (85/80 mm) |
| Wheels, number front/rear (× = driven wheels) | 1x |
| Tread width, front | 19.01 in (483 mm) |
| Tread width, rear | 14.56 in (370 mm) |
| Lift height | 4.92 in (125 mm) |
| Lowered height | 3.24 in (82.5 mm) |
| Overall length | 63.7 in (1620 mm) |
| Length to face of forks | 18.5 in (470 mm) |
| Overall width | 28.11 in (714 mm) |
| Fork dimensions | 2.1/6.6/45.2 in (55X170X1150 mm) |
| Aisle width for pallets 1000×1200 cross-ways | 84.7 in (2153 mm) |
| Aisle width for pallets 800×1200 length-ways | 81.88 in (2080 mm) |
Weight 2 specs
| Service weight | 705 lb (320 kg) |
|---|---|
| Axle loading, unloaded front/rear | 518/99 lb (235/45 kg) |
Power / Engine 6 specs
| Drive motor rating S2 60 min | 1.6 kW |
|---|---|
| Lift motor rating at S3 15% | 8 kW |
| Battery voltage/nominal capacity | 24 V / 100 Ah |
| Battery weight (± 5%) | 97 lb (44 kg) |
| Type of drive control | AC |
| Charger output current | 30 A |
