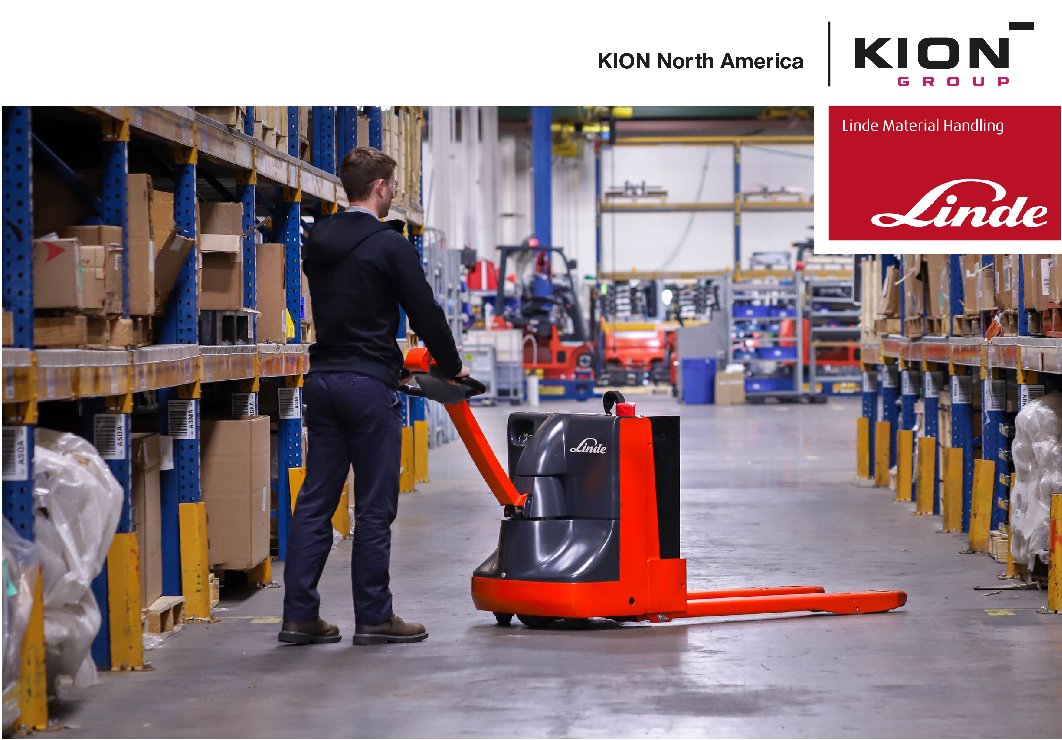

Linde MT20 Specs

Quick-reference specifications for the Linde MT20 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Maximum gradeability with load/without load: 8.0 / 16.0 %

Performance 5 specs

Load capacity	4500 lb
Load center	24 in
Turning radius	67 in
Travel speed, with/without load	3.5/3.6 mph
Maximum gradeability with load/without load	8.0 / 16.0 %

Dimensions 14 specs

Wheelbase	55.8 in
Tire size, front	9×3 in
Tire size, rear	3.25 x 4.5 in
Caster wheel dimension	3.3×1.9 in
Lift	4.7 in
Height of tiller arm in operating position, min/max	28/47 in
Height, lowered	3.25 in
Overall length	69 in
Length to fork face	23.5 in
Overall width	28 in
Fork dimensions	2.2 x 6.7 x 45 in
Fork spread	27.0 in
Ground clearance, center of wheelbase	1.2 in
Aisle width with pallet 48×40 along forks	71.5 in

Weight 3 specs

Service weight (+/- 5.0%)	1118 lb
Axle load with load, front/rear	2064/3454 lb
Axle load without load, front/rear	909/209 lb

Power / Engine 3 specs

Battery according to DIN 43531/35/36 A,B,C, no	26.8 x 8.1 x open
Battery weight (± 5%)	359 lb
Type of drive unit	AC
