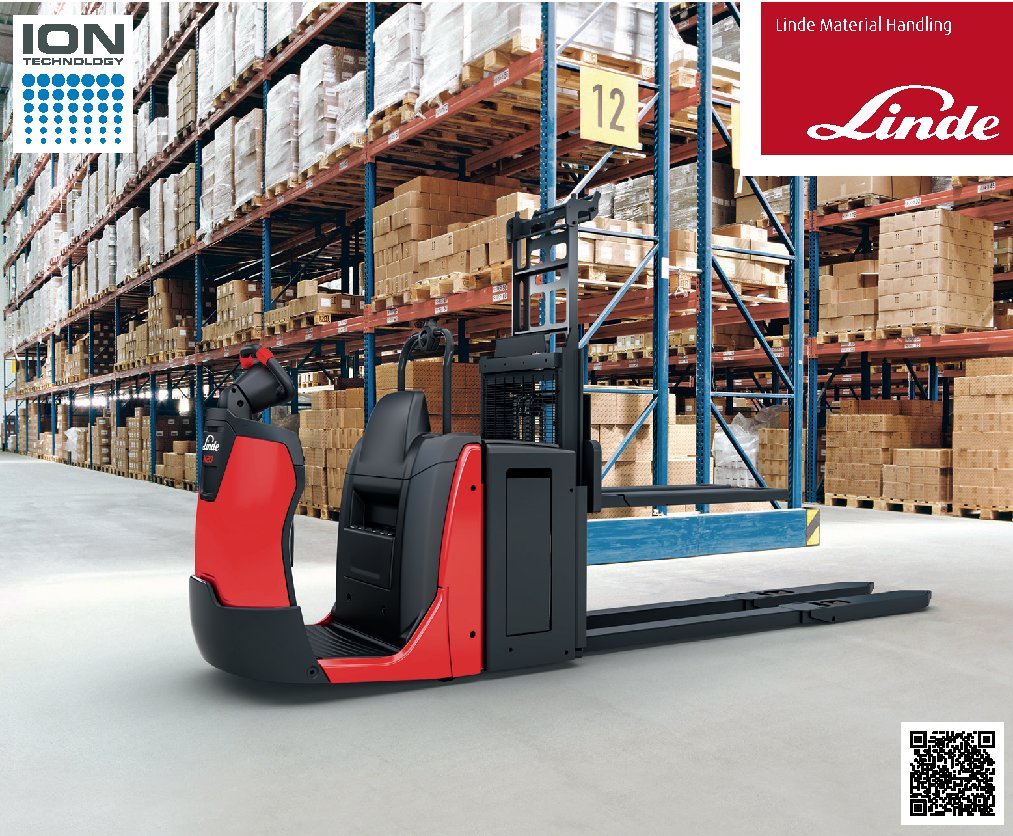

Linde N20 Specs

Quick-reference specifications for the Linde N20 forklift, taken from the manufacturer’s spec sheet.

Performance 14 specs

Load capacity	0.8 t
Load centre	600 mm
Turning radius	3169 / 3097 mm
Travel speed, with/without load	10 / 12 km/h
Travel speed, backward, with/without load	10 km/h
Lifting speed, initial lift, with/without load	0.06 / 0.07 m/s
Lifting speed, main lift, with/without load	0.12 / 0.2 m/s
Lowering speed, initial lift, with/without load	0.06 / 0.08 m/s
Lowering speed, main lift, with/without load	0.3 / 0.2 m/s
Acceleration time (10 m), with/without load	6.1 / 4.9 s
Service brake	Electro-hydraulic
Type of drive control	LAC
Noise level at operator’s ear	< 85 dB (A)
Level of vibration felt by the operator	0.7 m/s²

Axle centre to fork face	1602 / 1532 mm
Wheelbase	2265 / 2195 mm
Tyre size, front	ø 254 x 102
Tyre size, rear	2x ø 85 x 60
Track width, front	491 mm
Track width, rear	380 mm
Height of mast, lowered	1315 mm
Free lift	750 mm
Lift	750 mm
Height of mast, extended	1391 mm
Initial lift	115 mm
Height of seat / stand on platform	867 / 1000 mm
Height of wheel arms	86 mm
Overall length	3968 mm
Length to fork face	1567 mm
Overall width	800 mm
Forkdimensionss/e/l	55 / 180 / 1200 mm
Width of fork carriage	780 mm
Width over forks	560 mm
Ground clearance, below mast	20 / 145 mm
Ground clearance, centre of wheelbase	20 / 145 mm
Aisle width with pallet 1000 x 1200 across forks	4367 / 4352 mm
Aisle width with pallet 800 x 1200 across forks	4089 / 4058 mm

Service weight	1473 kg
Axle load with load, front / rear	1684 / 1865 kg
Axle load without load, front / rear	1182 / 291 kg
