Forklift · Linde

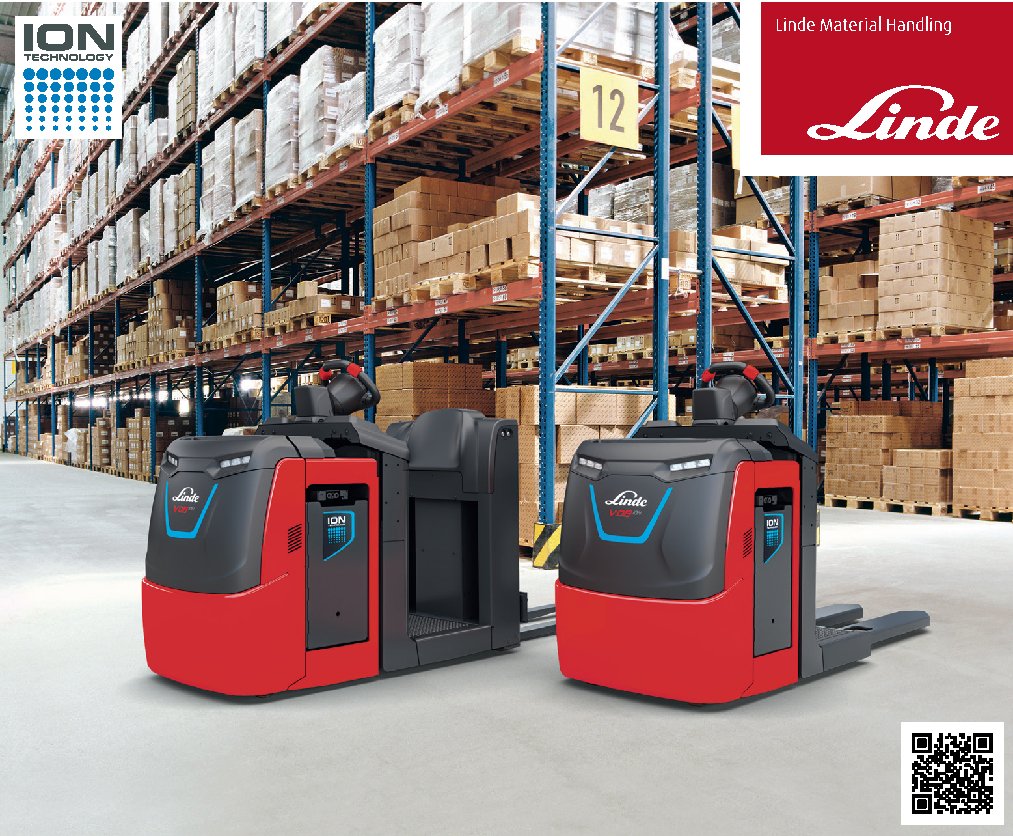

Linde V0801 Specs
Quick-reference specifications for the Linde V0801 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating weight
- 2,777 lb1,260 kg
Performance 6 specs
| Load capacity (long chassis) | 2,205 lb (1,000 kg) |
|---|---|
| Load capacity (short chassis) | 1,543 lb (700 kg) |
| Lift height | 3.4 ft (1,050 mm) |
| Travel speed with load | 6.2 mph (10 km/h) |
| Travel speed without load | 6.2 mph (10 km/h) |
| Turning radius | 5.7 ft (1,742 mm) |
Dimensions 6 specs
| Forks dimensions | 560 / 1150 / 60 mm |
|---|---|
| Transport length | 8.5 ft (2,580 mm) |
| Transport width | 2.6 ft (800 mm) |
| Transport height | 4.5 ft (1,380 mm) |
| Wheelbase | 3.8 ft (1,152 mm) |
| Aisle width (800×1200 pallet) | 9.5 ft (2,900 mm) |
Weight 2 specs
| Operating weight | 2,777 lb (1,260 kg) |
|---|---|
| Battery weight | 650 lb (295 kg) |
Power / Engine 6 specs
| Battery according to DIN | 43531 / 35 / 36 A. B. C. no |
|---|---|
| Support data terminal and power supply cable | 24 V |
| Battery compartment, lateral change | 3 PzS (300 Ah / 375 Ah) |
| Traction motor | 2.3 kW |
| Hoist motor | 2.2 kW |
| Battery voltage/capacity | 24 V / 345–375 Ah |
