Telehandler · Manitou

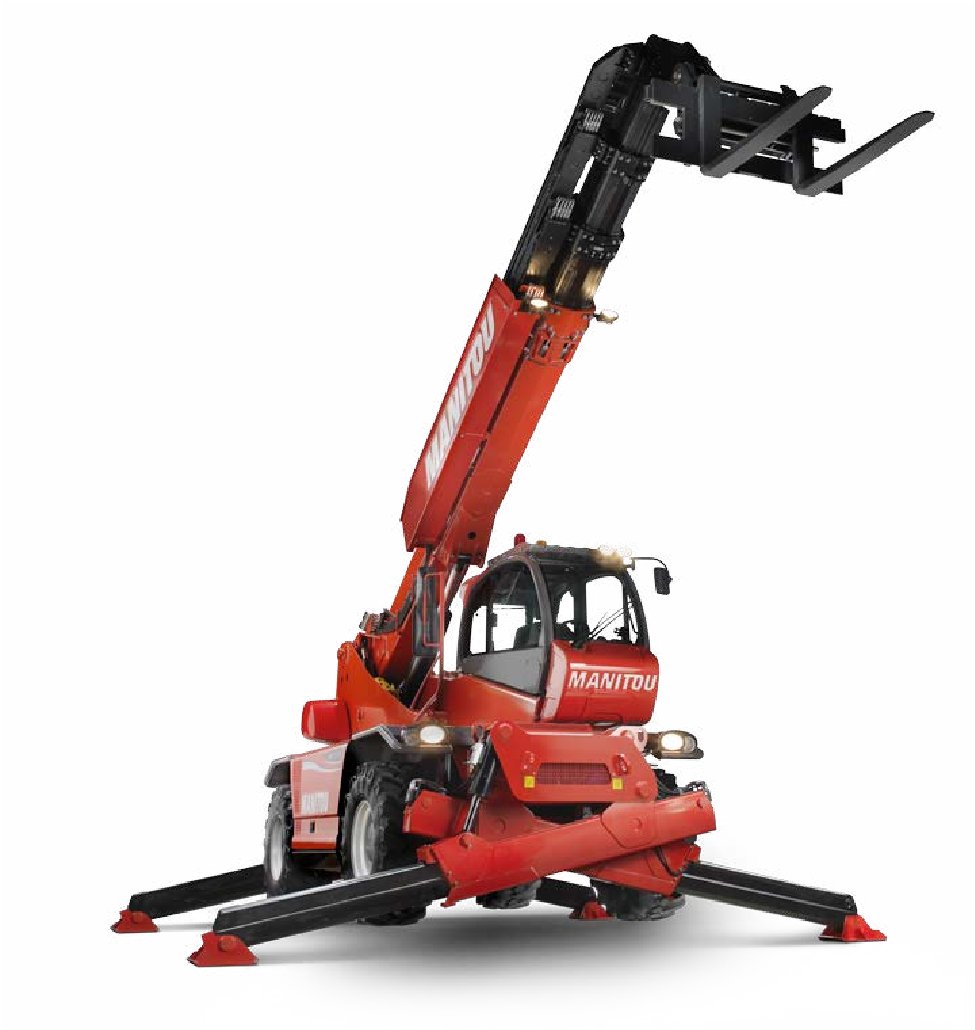

Manitou MRT2150 Specs
Quick-reference specifications for the Manitou MRT2150 telehandler, from the manufacturer’s spec sheet and published specifications.
- Max Lift Capacity
- 11,021 lb4,999 kg
- Operating Weight
- 35,483.5 lb16,095 kg
Performance 9 specs
| Max Lift Height | 67.6 ft (20.60 m) |
|---|---|
| Max Forward Reach | 59.4 ft (18.11 m) |
| Max Lift Capacity | 11,021 lb (4,999 kg) |
| Max Load at Max Height | 5,511.6 lb (2,500 kg) |
| Max Load at Max Reach | 1,322.8 lb (600 kg) |
| Drawbar Pull | 18,446.1 lb (8,367 kg) |
| Max Speed Forward | 22.4 mph (36.05 kph) |
| Max Speed Reverse | 22.4 mph (36.05 kph) |
| Turning Radius Outside Tires | 132.7 ft (40.45 m) |
Dimensions 5 specs
| Length to Fork Face | 21.3 ft (6.49 m) |
|---|---|
| Width Over Tires | 8.0 ft (2.44 m) |
| Overall Height | 10.1 ft (3.08 m) |
| Ground Clearance | 15.0 in (38.10 cm) |
| Wheelbase | 9.1 ft (2.77 m) |
Weight 1 spec
| Operating Weight | 35,483.5 lb (16,095 kg) |
|---|
Power / Engine 3 specs
| Gross Power | 147.6 hp (110.07 kW) |
|---|---|
| Displacement | 259.4 cu in (4,250.81 cu cm) |
| Fuel Capacity | 60.8 gal (230.13 l) |
Hydraulics / Fluids 3 specs
| Pump Type | 3 gear type pumps |
|---|---|
| Relief Valve Pressure | 3916.1 psi |
| Hydraulic System Fluid Capacity | 52.9 gal (200.23 l) |
