Telehandler · Manitou

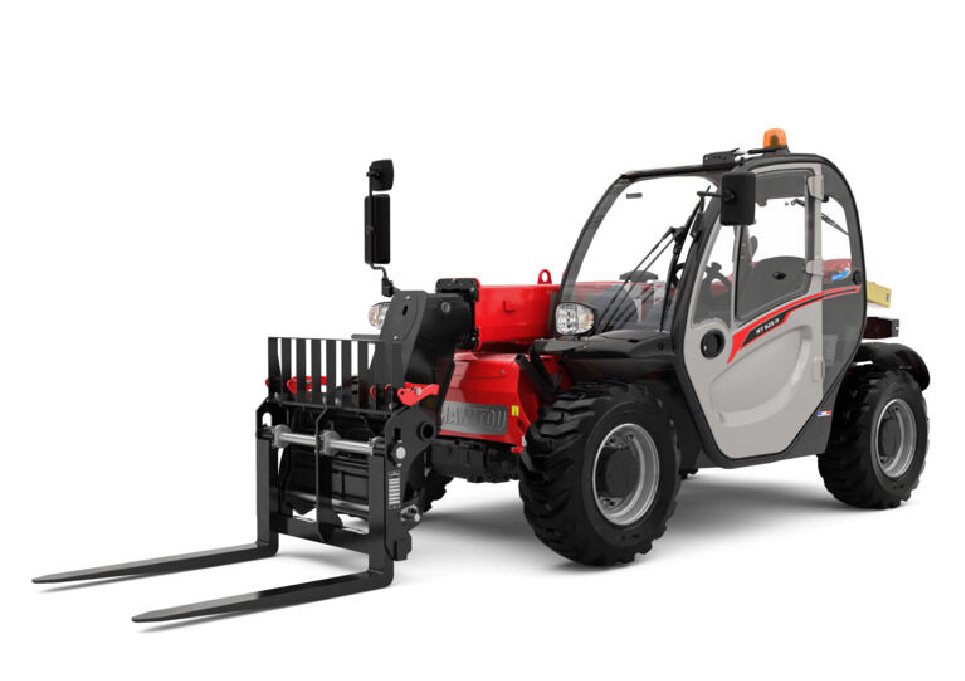

Manitou MT625H Specs
Quick-reference specifications for the Manitou MT625H telehandler, taken from the manufacturer’s spec sheet.
Performance 14 specs
| Max. capacity | 5512 lb |
|---|---|
| Max. outreach | 11 ft 2 in |
| Breakout force with bucket | 3427 daN |
| Tilt-up angle | 12 ° |
| Tilt-down angle | 117 ° |
| External turning radius (over tyres) | 10 ft 10 in |
| Lifting | 8 s |
| Lowering | 5.40 s |
| Drawbar pull (Laden) | 3550 daN |
| Max. travel speed | 15 mi/h |
| Parking brake | Automatic negative parking brake |
| Noise at driving position (LpA) | 76 dB |
| Noise to environment (LwA) | 104 dB |
| Vibration on hands/arms | < 2.50 m/s² |
Dimensions 8 specs
| Max. lifting height | 19 ft 2 in |
|---|---|
| Overall length to carriage | 12 ft 7 in |
| Overall width | 5 ft 11 in |
| Overall height | 6 ft 4 in |
| Wheelbase | 7 ft 7 in |
| Ground clearance | 1 ft 1 in |
| Overall cab width | 2 ft 7 in |
| Forks length / width / section | 47 in x 5 in / 2 in |
Weight 3 specs
| Unladen weight (with forks) | 10582 lb |
|---|---|
| Tyres type | Pneumatic |
| Standard tyres | CAMSO SKS532 12-16.5 |
Power / Engine 6 specs
| Engine brand | Kubota |
|---|---|
| Engine model | V3307-CR-TE5B |
| I.C. Engine power rating – Power (kW) | 75 Hp (55.40 kW) |
| Max. torque / Engine rotation | 265 Nm @ 1400 rpm |
| Transmission type | Hydrostatic |
| Engine oil | 3 US gal |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic Pressure | 3408 PSI |
| Hydraulic oil | 30 US gal |
| Fuel tank | 17 US gal |
