Telehandler · Manitou

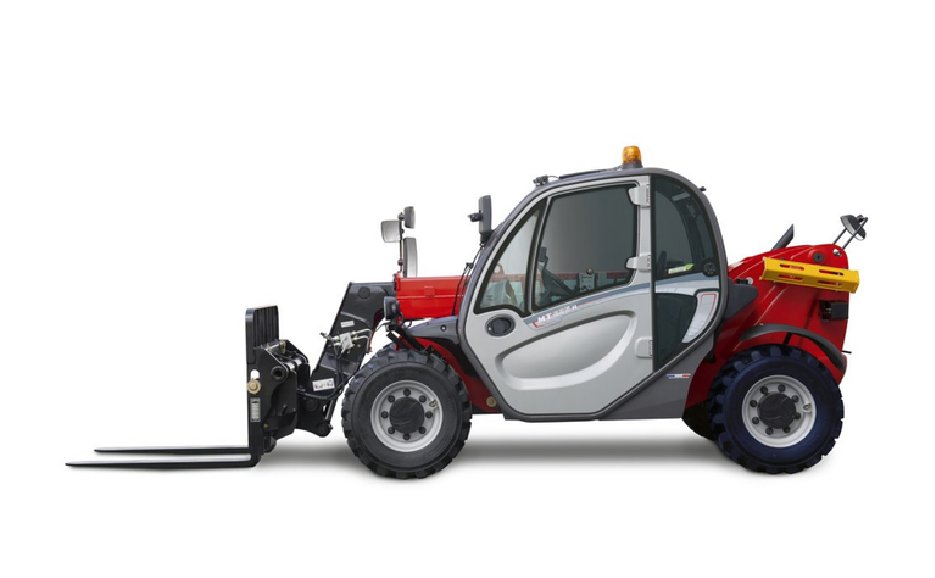

Manitou MT625 COMFORT Specs
Quick-reference specifications for the Manitou MT625 COMFORT telehandler, taken from the manufacturer’s spec sheet.
Performance 15 specs
| Max. capacity | 2500 kg |
|---|---|
| Maximum outreach | 3.40 m |
| Breakout force with bucket | 3427 daN |
| Tilt-up angle (a4) | 12 ° |
| Tilt-down angle (a5) | 117 ° |
| External turning radius (over tyres) (Wa1) | 3.31 m |
| Lifting | 8 s |
| Lowering | 5.40 s |
| Drawbar pull (Laden) | 3550 daN |
| Max. travel speed | 24.90 km/h |
| Parking brake | Automatic negative parking brake |
| Axle Manufacturer | Dana |
| Noise at driving position (LpA) | 76 dB |
| Noise to environment (LwA) | 104 dB |
| Vibration on hands/arms | < 2.50 m/s² |
Dimensions 11 specs
| Max. lifting height | 5.85 m |
|---|---|
| Overall length to carriage (l11) | 3.83 m |
| Length to face of forks (l2) | 3.90 m |
| Overall width (b1) | 1.81 m |
| Overall height (h17) | 1.92 m |
| Wheelbase (y) | 2.30 m |
| Ground clearance (m4) | 0.33 m |
| Overall cab width (b4) | 0.79 m |
| Tires type | Inflatable |
| Standard tires | CAMSO SKS532 12-16.5 |
| Forks length / width / section (l / e / s) | 1200 mm x 125 mm x 45 mm |
Weight 1 spec
| Overall weight | 4800 kg |
|---|
Power / Engine 7 specs
| Engine brand | Kubota |
|---|---|
| Engine norm | Stage V, Tier 4 final |
| Engine model | V3307-CR-TE5B |
| I.C. Engine power rating – Power | 75 Hp (55.40 kW) |
| Max. torque / Engine rotation | 265 Nm @ 1400 rpm |
| Transmission type | Hydrostatic |
| Engine oil | 11.20 l |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic flow / Pressure | 90 l/min-235 bar |
| Hydraulic oil | 115 l |
| Fuel tank | 63 l |
