Aerial Lift · Sinoboom

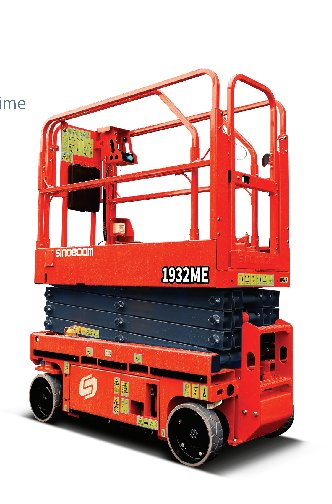

Sinoboom 1932ME Specs
Quick-reference specifications for the Sinoboom 1932ME aerial lift, taken from the manufacturer’s spec sheet.
- Weight
- 3,473 lb1,575 kg
- Gradeability
- 25%
Performance 6 specs
| Motor, Front Wheel | 100 ～ 240 V AC |
|---|---|
| Platform Extension | 3 ft (0.9 m) |
| Lift Time (Unloaded) | 15 s~20 s |
| Lower Time (Unloaded) | 25 s~30 s |
| Gradeability | 25% |
| Turning Radius (Inside/Outside) | 0 /4 ft 11 in (0 m/1.49 m) |
Dimensions 9 specs
| Dimensions | 25 ft (7.6 m) |
|---|---|
| Max Platform Height (Indoor/Outdoor) | 19 ft (5.8 m) |
| Length-Stowed | 5 ft 11 in (1.8 m) |
| Machine Width | 2 ft 8 in (0.81 m) |
| Height-Stowed (Rails Folded) | 6 ft 2 in (1.88 m) |
| Height-stowed (Rails Unfolded) | 7 ft (2.14 m) |
| Wheelbase | 4 ft 4 in (1.33 m) |
| Ground Clearance (Pothole Guard Stowed) | 3 in (75 mm) |
| Ground Clearance (Pothole Guard Deployed) | 0.95 in (24 mm) |
Weight 1 spec
| Weight | 3,473 lb (1,575 kg) |
|---|
Power / Engine 3 specs
| Power | 4×6 V, 220 Ah |
|---|---|
| Power Source | 24 V DC |
| Charger Output | 30 A |
Hydraulics / Fluids 1 spec
| Extension Deck Capacity | 265 lb (120 kg) |
|---|
