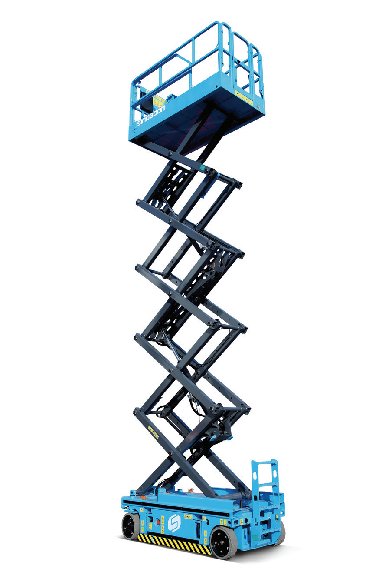

Sinoboom 3346E Specs
Quick-reference specifications for the Sinoboom 3346E aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 705.6 lb320 kg
- Gradeability
- 25%
Performance 10 specs
| Platform Capacity | 705.6 lb (320 kg) |
|---|---|
| Extension Platform Capacity | 265 lb (120 kg) |
| Max Occupants （Indoor/Outdoor） | 2 Persons/1 Person |
| Drive Speed (Stowed) | 0～2.5 mph (0～4 km/h) |
| Drive Speed (Raised) | 0～0.5 mph (0～0.8 km/h) |
| Lift Time (Unloaded) | 53s~58s |
| Lower Time (Unloaded) | 40s~45s |
| Gradeability | 25% |
| Turning Radius (Inside/Outside) | 0 / 7 ft 8.5 in (0 / 2.35 m) |
| Drive × Steer | 2WD×2 WS |
Dimensions 10 specs
| Max Platform Height(Indoor/Outdoor) | 39 ft 4.5 in (10 m) |
|---|---|
| Platform Extension | 3 ft (0.9 m) |
| Length-Stowed | 8 ft (2.45 m) |
| Width-Stowed | 3 ft 10 in (1.17 m) |
| Height-stowed (Rails Folded) | 6 ft 1 in (1.86 m) |
| Height-stowed (Rails Unfolded) | 8 ft 1.6 in (2.48 m) |
| Wheelbase | 6 ft 2 in (1.88 m) |
| Ground Clearance(Pothole Guard Stowed) | 4 in (0.1 m) |
| Ground Clearance(Pothole Guard De-ployed) | 0.98 in (25 mm) |
| Platform Size (L×W×H) | 7 ft 6.5 in×3 ft 9 in×3 ft 7 in (2.30 m×1.15 m×1.1 m) |
Weight 1 spec
| Weight (Indoor/Outdoor) | 6,206 lb (2,815 kg) |
|---|
Power / Engine 3 specs
| Power Source (V/kW) | 24 V DC ，3.3 kW |
|---|---|
| Drive Motor (V/kW) | 24 V DC / 0.85 kW 24 V AC / 0.7 kW |
| Charger (Input/Output) | 100～240 V AC/30 A |
Hydraulics / Fluids 1 spec
| Hydraulic Tank Capacity | 3.3 gal（UK）/4.0 gal（US） (15 L) |
|---|
