Aerial Lift · Sinoboom

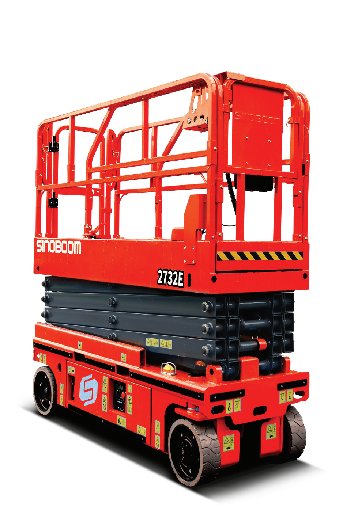

Sinoboom 2732E Specs
Quick-reference specifications for the Sinoboom 2732E aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 551 lb250 kg
- Max Working Height (Indoor/Outdoor)
- 32 ft 7 in/25 ft 8 in9.9 m/7.8 m
- Weight
- 4,994 lb2,265 kg
- Gradeability
- 25%
Performance 10 specs
| Max Working Height (Indoor/Outdoor) | 32 ft 7 in/25 ft 8 in (9.9 m/7.8 m) |
|---|---|
| Platform Extension | 3 ft (0.9 m) |
| Platform Capacity | 551 lb (250 kg) |
| Extension Platform Capacity | 265 lb (120 kg) |
| Drive Speed (Stowed) | 2.5 mph (4 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Lift Time (Unloaded) | 30 s~35 s |
| Descent Time (Unloaded) | 34 s~39 s |
| Gradeability | 25% |
| Turning Radius (Inside/Outside) | 0/6 ft 11 in (0 m/2.1 m) |
Dimensions 8 specs
| Max Platform Height (Indoor/Outdoor) | 26 ft 7 in/19 ft 8 in (8.1 m/6 m) |
|---|---|
| Length-Stowed | 8 ft (2.46 m) |
| Width-Stowed | 2 ft 9 in (0.83 m) |
| Height-Stowed (Rails Folded) | 6 ft 5 in (1.96 m) |
| Height-Stowed (Rails Unfolded) | 7 ft 9 in (2.36 m) |
| Wheelbase | 6 ft 2 in (1.88 m) |
| Ground Clearance (Pothole Guard Stowed) | 4 in (0.1 m) |
| Ground Clearance (Pothole Guard Deployed) | 0.98 in (25 mm) |
Weight 1 spec
| Weight | 4,994 lb (2,265 kg) |
|---|
Power / Engine 4 specs
| Batteries | 4×6 V, 220 Ah |
|---|---|
| Power Source | 24 V DC |
| Charger Input | 100 ～ 240 V AC |
| Charger Output | 30 A |
