Telehandler · Skyjack

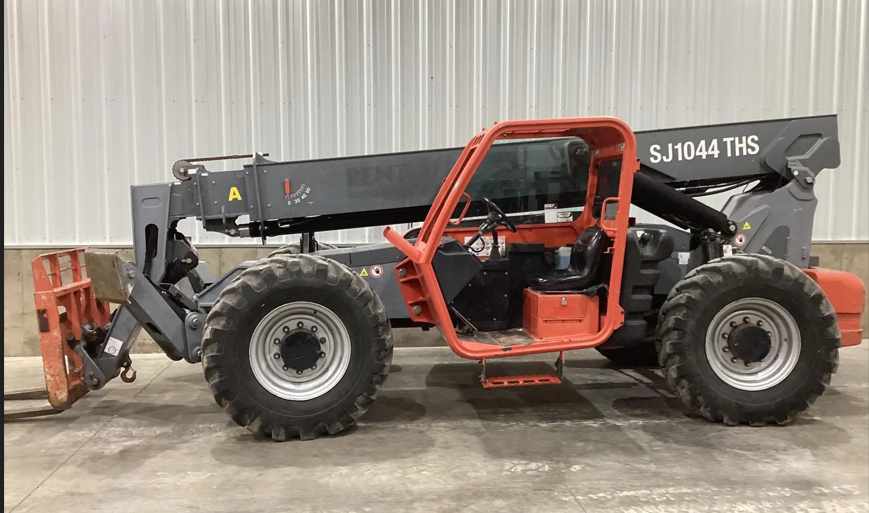

Skyjack SJ1044TH Specs
Quick-reference specifications for the Skyjack SJ1044TH telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 10,000 lb4,535 kg
- Maximum Lift Height
- 44 ft 3 in13.49 m
- Maximum Forward Reach
- 29 ft 6 in9.0 m
- Operating Weight
- 27,645 lb12,540 kg
Performance 7 specs
| Maximum Lift Capacity | 10,000 lb (4,535 kg) |
|---|---|
| Rated Lift Capacity @ Maximum Height | 7,000 lb (3,175 kg) |
| Maximum Forward Reach | 29 ft 6 in (9.0 m) |
| Rated Lift Capacity @ Maximum Reach | 1,800 lb (816 kg) |
| Max Travel Speed – Forward | 15 mph (24 km/h) |
| Drawbar Pull | 20,000 lb |
| Turning Radius – Outside | 147 in (3.73 m) |
Dimensions 5 specs
| Maximum Lift Height | 44 ft 3 in (13.49 m) |
|---|---|
| O/A Length – Less Forks | 21 ft 2 in (6.45 m) |
| Overall Height – Stowed | 8 ft 1 in (2.47 m) |
| Overall Width | 8 ft 5 in (2.56 m) |
| Ground Clearance | 19 in (48.3 cm) |
Weight 1 spec
| Operating Weight | 27,645 lb (12,540 kg) |
|---|
Power / Engine 4 specs
| Engine | 74 hp / 287 lb-ft Deutz TCD (3.6 L T4F) |
|---|---|
| Transmission | Dana Powershift, 3 Speed F/R |
| Axles | Dana |
| Tires | Pneumatic 14 x 24 16PR Grip Lug |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 35 gallon (132 L) |
|---|---|
| Hydraulic Reservoir | 43.85 gallon (166 L) |
