Telehandler · Skyjack

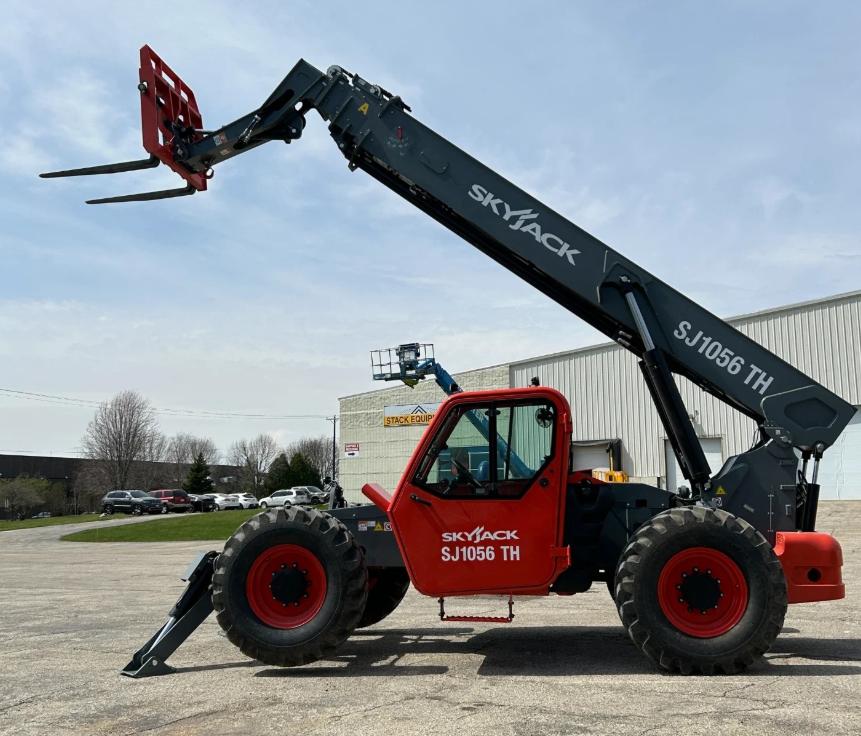

Skyjack SJ1056TH Specs
Quick-reference specifications for the Skyjack SJ1056TH telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 10,000 lb4,535 kg
- Maximum Lift Height
- 56 ft 3 in17.14 m
- Maximum Forward Reach
- 42 ft 6 in12.95 m
- Operating Weight
- 31,500 lb14,288 kg
Performance 9 specs
| Maximum Lift Capacity | 10,000 lb (4,535 kg) |
|---|---|
| Rated Lift Capacity @ Maximum Height | 4,000 lb (1,814 kg) |
| Rated Lift Capacity @ Max Height w. O/R | 6,000 lb (2,722 kg) |
| Maximum Forward Reach | 42 ft 6 in (12.95 m) |
| Rated Lift Capacity @ Maximum Reach | 400 lb (181 kg) |
| Rated Lift Capacity @ Max Reach w. O/R | 3,000 lb (1,361 kg) |
| Max Travel Speed – Forward | 15 mph (24 km/h) |
| Drawbar Pull | 20,000 lb |
| Turning Radius – Outside | 153 in (3.89 m) |
Dimensions 5 specs
| Maximum Lift Height | 56 ft 3 in (17.14 m) |
|---|---|
| O/A Length – Less Forks | 22 ft 2 in (6.75 m) |
| Overall Height – Stowed | 8 ft 1 in (2.47 m) |
| Overall Width | 8 ft 5 in (2.56 m) |
| Ground Clearance | 19 in (48.3 cm) |
Weight 1 spec
| Operating Weight | 31,500 lb (14,288 kg) |
|---|
Power / Engine 4 specs
| Engine | 74 hp / 287 lb-ft Deutz TCD (3.6 L T4F) |
|---|---|
| Transmission | Dana Powershift, 3 Speeds F/R |
| Axles | Dana |
| Tires | Pneumatic 14 x 24 16PR Grip Lug |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 35 gallon (132 L) |
|---|---|
| Hydraulic Reservoir | 43.85 gallon (166 L) |
