Skyjack SJ1044THS Specs

Quick-reference specifications for the Skyjack SJ1044THS telehandler, compiled from published specifications.

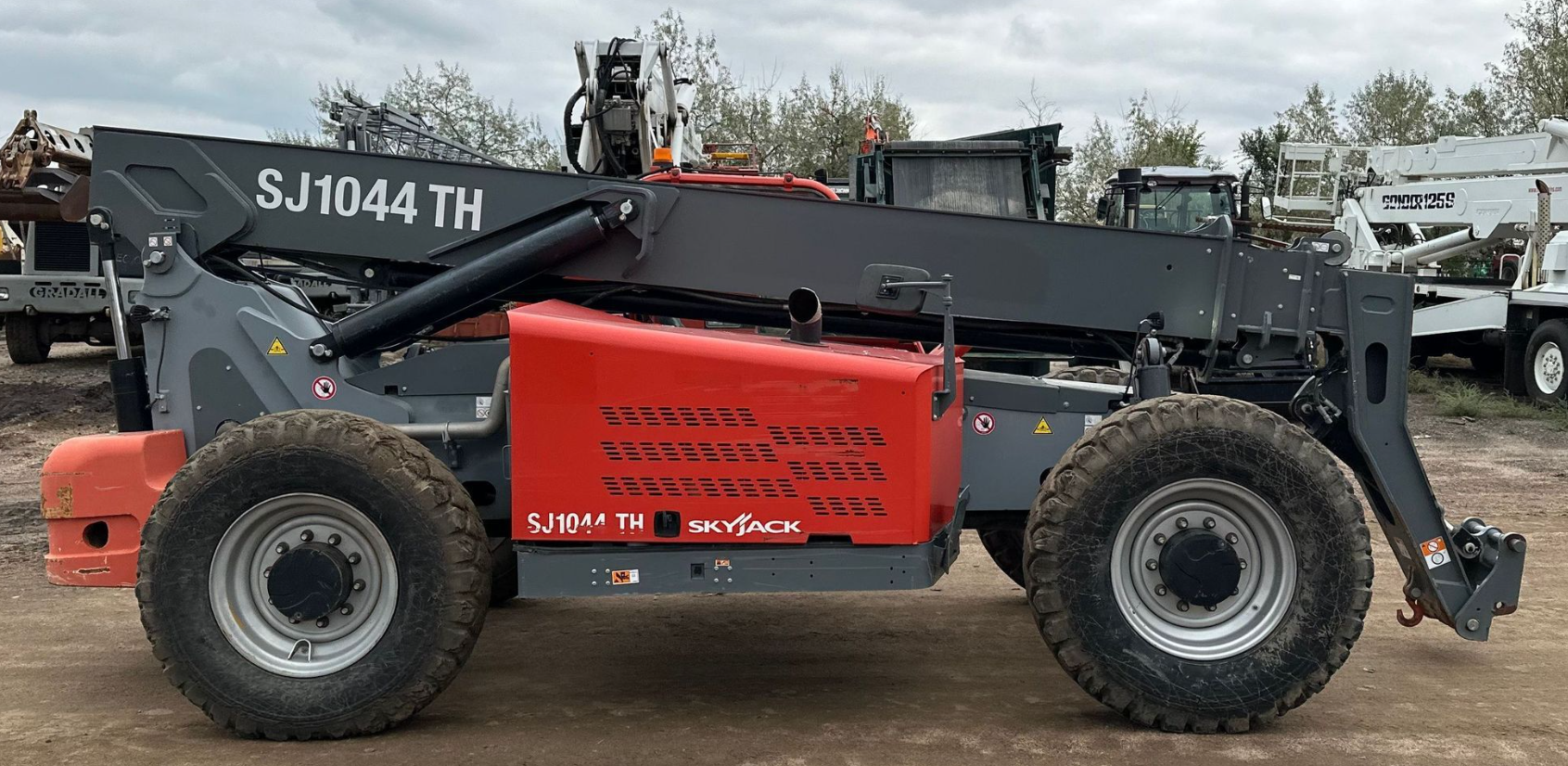

Skyjack SJ1044THS
Maximum Lift Capacity
10,000 lb4,535 kg
Maximum Lift Height
44 ft 3 in13.49 m
Maximum Forward Reach
29 ft 6 in9.0 m
Operating Weight
28,226 lb12,803 kg

Performance 7 specs

Maximum Lift Capacity 10,000 lb (4,535 kg)
Maximum Lift Height 44 ft 3 in (13.49 m)
Rated Lift Capacity @ Maximum Height 7,000 lb (3,175 kg)
Maximum Forward Reach 29 ft 6 in (9.0 m)
Rated Lift Capacity @ Maximum Forward Reach 1,800 lb (816 kg)
Max Travel Speed – Forward 15 mph (24 km/h)
Drawbar Pull 20,000 lb

Dimensions 5 specs

Overall Length – Less Forks 21 ft 2 in (6.45 m)
Overall Height – Stowed 8 ft 1 in (2.47 m)
Overall Width 8 ft 5 in (2.56 m)
Ground Clearance 19 in (48.3 cm)
Turning Radius – Outside 147 in (3.73 m)

Weight 1 spec

Operating Weight 28,226 lb (12,803 kg)

Power / Engine 3 specs

Engine Type Deutz TCD 3.6 L T4F
Engine Power 74 hp
Engine Torque 287 lb-ft

Hydraulics / Fluids 2 specs

Fuel Tank Capacity 35 gal (132 L)
Hydraulic Reservoir 43.85 gal (166 L)
