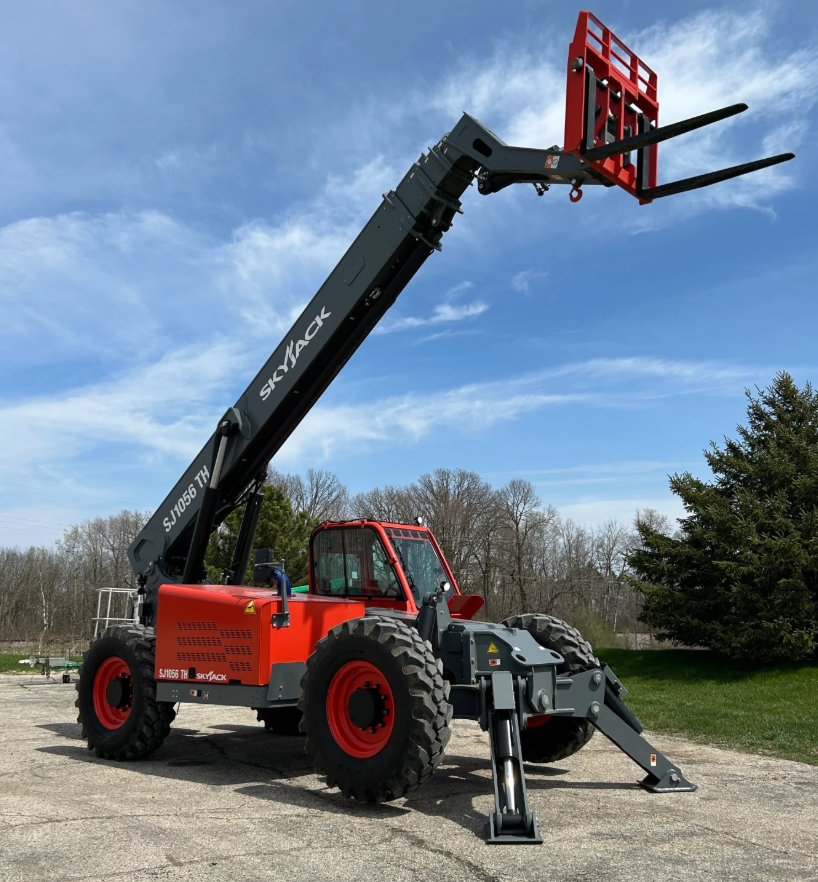

Skyjack SJ1056THS Spec Sheet
Quick-reference specifications for the Skyjack SJ1056THS. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum Lift Height: 56’ 3” (17.14 m)
Maximum Forward Reach: 42’ 6” (12.95 m)
Overall Width: 8’ 5” (2.56 m)
Operating Weight: 31,500 lbs (14,288 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| ZONE 10,000 lbs (4,535 kg) capacity, | 56’ 3” (17.14 m) maximum lift height |
|---|---|
| Maximum Lift Capacity | 10,000 lbs (4,535 kg) |
| Maximum Lift Height | 56’ 3” (17.14 m) |
| Maximum Forward Reach | 42’ 6” (12.95 m) |
| Turning Radius – Outside | 153” (3.89 m) |
| Max Travel Speed – Forward | 15 mph (24 km/h) |
| Drawbar Pull | 20,000 lbs |
Dimensions
| O/A Length – Less Forks | 22’ 2” (6.75 m) |
|---|---|
| Overall Height – Stowed | 8’ 1” (2.47 m) |
| Overall Width | 8’ 5” (2.56 m) |
| Ground Clearance | 19” (48.3 cm) |
Weights & Electrical
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
|---|---|
| skyjack@skyjack.com | |
| www.skyjack.com | 0° |
| Operating Weight | 31,500 lbs (14,288 kg) |
Powertrain & Systems
| Engine 74hp / 287 lb-ft Deutz TCD | 3.6L T4F |
|---|---|
| Transmission Dana Powershift, | 3 Speeds F/R |
| Dana Steering 3 mode (Front Wheel, | 4 Wheel, Crab) |
| Tires Pneumatic 14 x 24 | 16PR Grip Lug |
Hydraulics & Capacities
| Fuel Tank Capacity | 35 gallon (132 L) |
|---|---|
| Hydraulic Reservoir | 43.85 gallon (166 L) |
