Equipment Spec Sheet

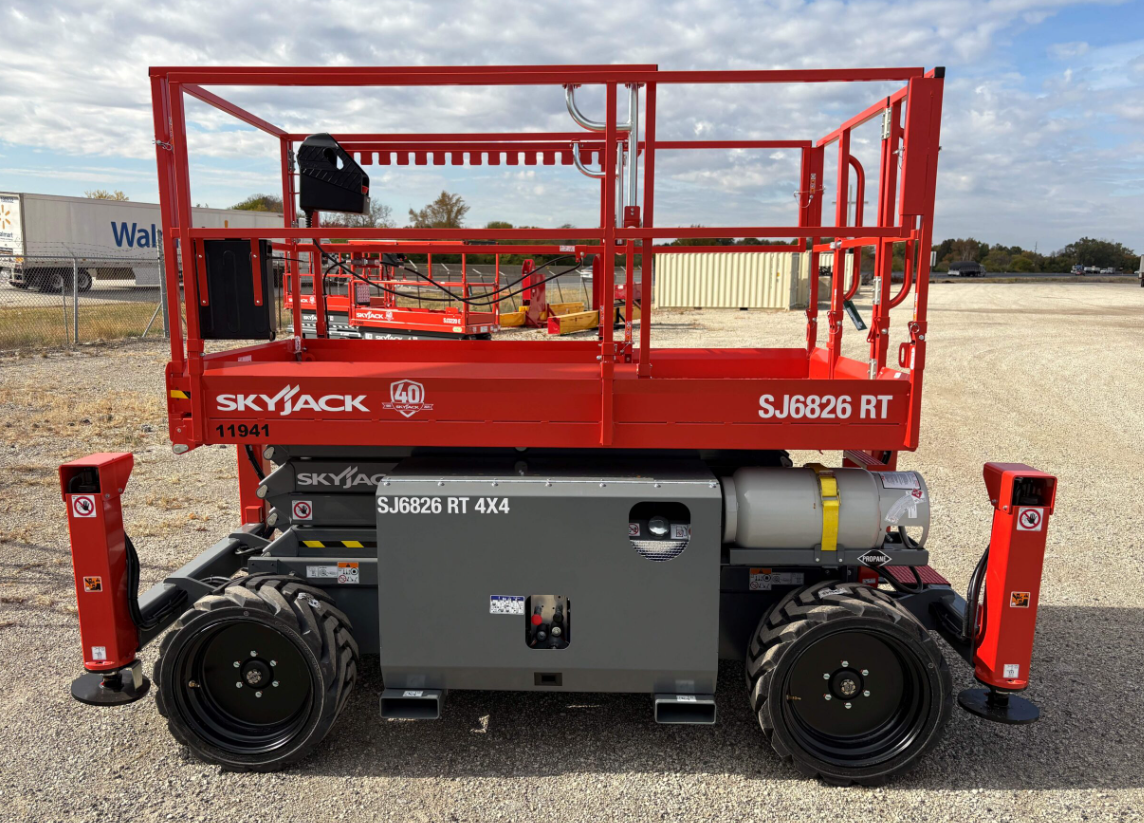

Skyjack SJ6826RT Spec Sheet
Quick-reference specifications for the Skyjack SJ6826RT. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working Height maximum: 32ft
Platform Height maximum: 26ft
Machine Weight (approx.): 7268lbs
Total Lift Capacity: 1250lbs
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Working Height maximum | 32ft |
|---|---|
| Platform Height maximum | 26ft |
| Gradeability – stowed | 50% |
| Total Lift Capacity | 1250lbs |
| Lift Capacity – Roll-out Extension Deck | 300lbs |
Dimensions
| Platform Size | 56” x 96” |
|---|---|
| Machine Height – stowed | 93.5” |
| Machine Height – Rails Down | 82” |
| Machine Width | 63.5” |
| Machine Length – stowed | 132” |
| Machine Length – deck extended | 175” |
| Ground Clearance (stowed) | 8” |
Weights & Electrical
| Machine Weight (approx.) | 7268lbs |
|---|
Hydraulics & Capacities
| Fuel Tank Capacity | 23 gallons |
|---|
