Scissor Lift · Skyjack

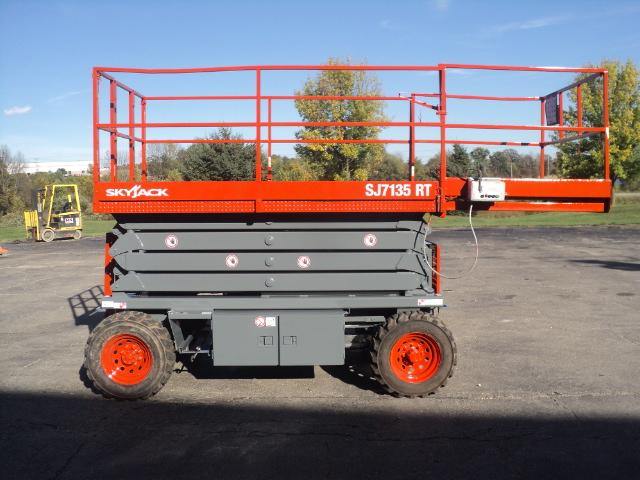

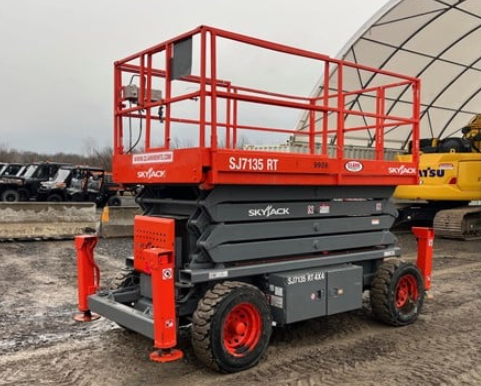

Skyjack SJ7135RT Specs
Quick-reference specifications for the Skyjack SJ7135RT scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 1,000 lb454 kg
- Work Height
- 41 ft12.50 m
- Weight
- 8,850 lb4,014 kg
- Gradeability
- 30%
Performance 15 specs
| Work Height | 41 ft (12.50 m) |
|---|---|
| Extension Deck | 4.5 ft (1.37 m) |
| Gradeability | 30% |
| Turning Radius (Inside) | 109 in (2.77 m) |
| Turning Radius (Outside) | 207 in (5.26 m) |
| Lift Time (With Rated Load) | 41 sec |
| Lower time (With Rated Load) | 44 sec |
| Drive Speed (Stowed) | 3 mph (4.8 km/h) |
| Drive Speed (Raised) | 0.35 mph (0.6 km/h) |
| Capacity (Overall) | 1,000 lb (454 kg) |
| Distributed Capacity (Main Platform) | 650 lb (295 kg) |
| Distributed Capacity (Extension Deck) | 350 lb (159 kg) |
| Local Floor Load (With Rated Load) | 120 psi (835 kPa) |
| Overall Floor Load (With Rated Load) | 227 psf (11 kPa) |
| Maximum # of Persons | 4 |
Dimensions 10 specs
| Raised Platform Height | 35 ft (10.67 m) |
|---|---|
| Lowered Platform Height | 67.5 in (1.71 m) |
| Overall Width | 71 in (1.80 m) |
| Overall Length | 127 in (3.23 m) |
| Stowed Height (Rails Up) | 112.5 in (2.86 m) |
| Stowed Height (Rails Down) | 84 in (2.13 m) |
| Platform Width (Inside Dimension) | 64 in (1.63 m) |
| Platform Length (Inside Dimension) | 116.5 in (2.96 m) |
| Ground Clearance | 8.5 in (0.22 m) |
| Wheelbase | 95 in (2.41 m) |
Weight 1 spec
| Weight | 8,850 lb (4,014 kg) |
|---|
