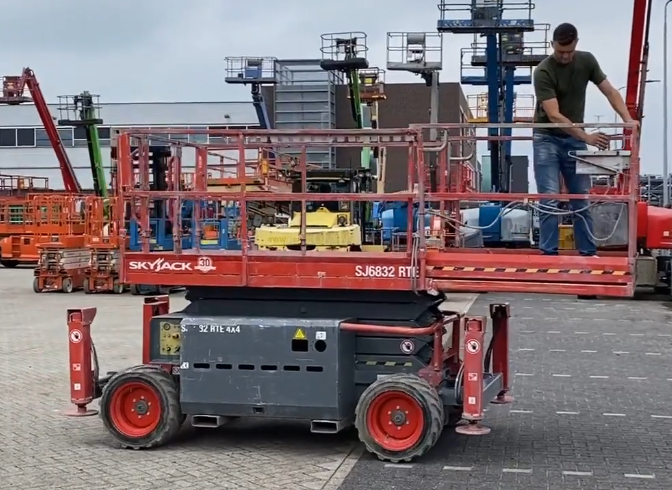

Skyjack SJ6832 RTE Spec Sheet
Quick-reference specifications for the Skyjack SJ6832 RTE. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B Raised Platform Height: 9.75 m
D Overall Width: 1.76 m
F Stowed Height (Rails Up): 2.51 m
Capacity (Overall): 454 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| B Raised Platform Height | 9.75 m |
|---|---|
| C Lowered Platform Height | 1.37 m |
| Gradeability | 38% |
| Turning Radius (Inside) | 1.52 m |
| Turning Radius (Outside) | 3.96 m |
| Capacity (Overall) | 454 kg |
| Distributed Capacity (Main Platform) | 318 kg |
| Distributed Capacity (Extension Deck) | 136 kg |
Dimensions
| A Work Height | 11.75 m |
|---|---|
| D Overall Width | 1.76 m |
| E Overall Length | 2.72 m (*3.35 m) |
| F Stowed Height (Rails Up) | 2.51 m |
| G Stowed Height (Rails Down) | 1.75 m |
| H Platform Width (Inside Dimension) | 1.42 m |
| I Platform Length (Inside Dimension) | 2.44 m |
| J Platform Length (Deck Extended) | 4.11 m |
| Ground Clearance | 0.20 m |
| Wheelbase | 2.04 m |
Weights & Electrical
| Weight | 4026 kg |
|---|---|
| Outrigger Levelling (Front to Back/Side to Side) 5° / | 8° |
| Skyjack Australia Pty Ltd Unit 1, | 35 Honeycomb Drive |
| jcranmer@skyjack.com |
Powertrain & Systems
| Drive Speed (Stowed) | 4.0 km/h |
|---|---|
| Drive Speed (Raised) | 0.6 km/h |
| Tyre Size 26 x | 12 |
Hydraulics & Capacities
| Hydraulic Reservoir | 87 L |
|---|
