Scissor Lift · Skyjack

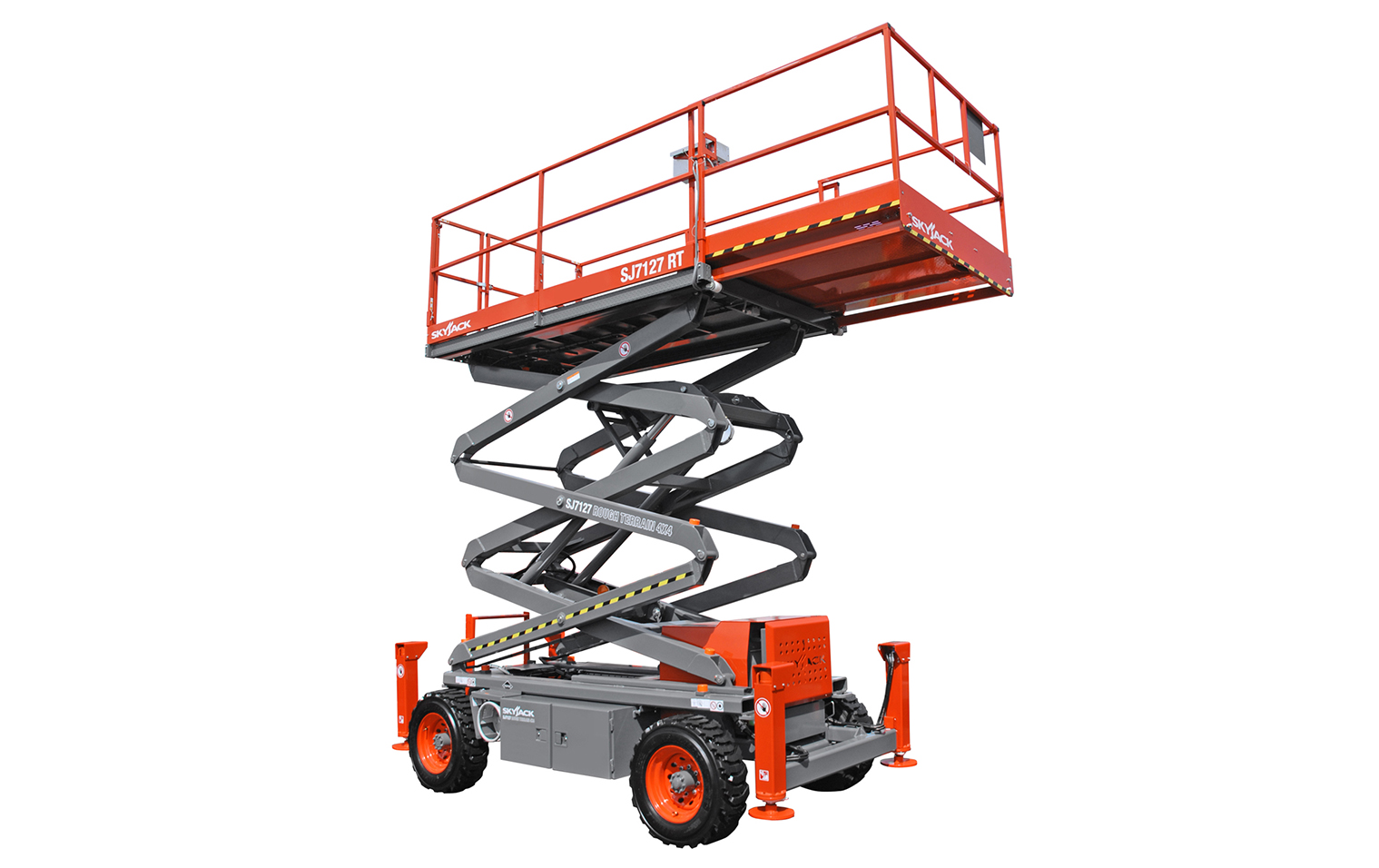

Skyjack SJ7127RT Specs
Quick-reference specifications for the Skyjack SJ7127RT scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 1,500 lb680 kg
- Work Height
- 33 ft10.1 m
- Weight
- 8,690 lb3,942 kg
- Gradeability
- 30%
Performance 10 specs
| Work Height | 33 ft (10.1 m) |
|---|---|
| Deck Extension | 4.5 ft (1.4 m) |
| Gradeability | 30% |
| Turning Radius (Inside) | 109 in (2.8 m) |
| Turning Radius (Outside) | 207 in (5.3 m) |
| Lift Time (With Rated Load) | 43 sec |
| Drive Speed (Stowed) | 3 mph (4.8 km/h) |
| Drive Speed (Raised) | 0.35 mph (0.6 km/h) |
| Capacity (Overall) | 1,500 lb (680 kg) |
| Maximum # of Persons | 5 |
Dimensions 10 specs
| Raised Platform Height | 27 ft (8.2 m) |
|---|---|
| Lowered Platform Height | 60.5 in (1.5 m) |
| Overall Width | 71 in (1.8 m) |
| Overall Length | 128 in (3.3 m) |
| Stowed Height (Rails Up) | 105.5 in (2.7 m) |
| Stowed Height (Rails Down) | 77 in (2.0 m) |
| Platform Width (Inside Dimension) | 64 in (1.6 m) |
| Platform Length (Inside Dimension) | 116.5 in (3.0 m) |
| Ground Clearance | 8.5 in (0.2 m) |
| Wheelbase | 95 in (2.4 m) |
Weight 1 spec
| Weight | 8,690 lb (3,942 kg) |
|---|
