Scissor Lift · Skyjack

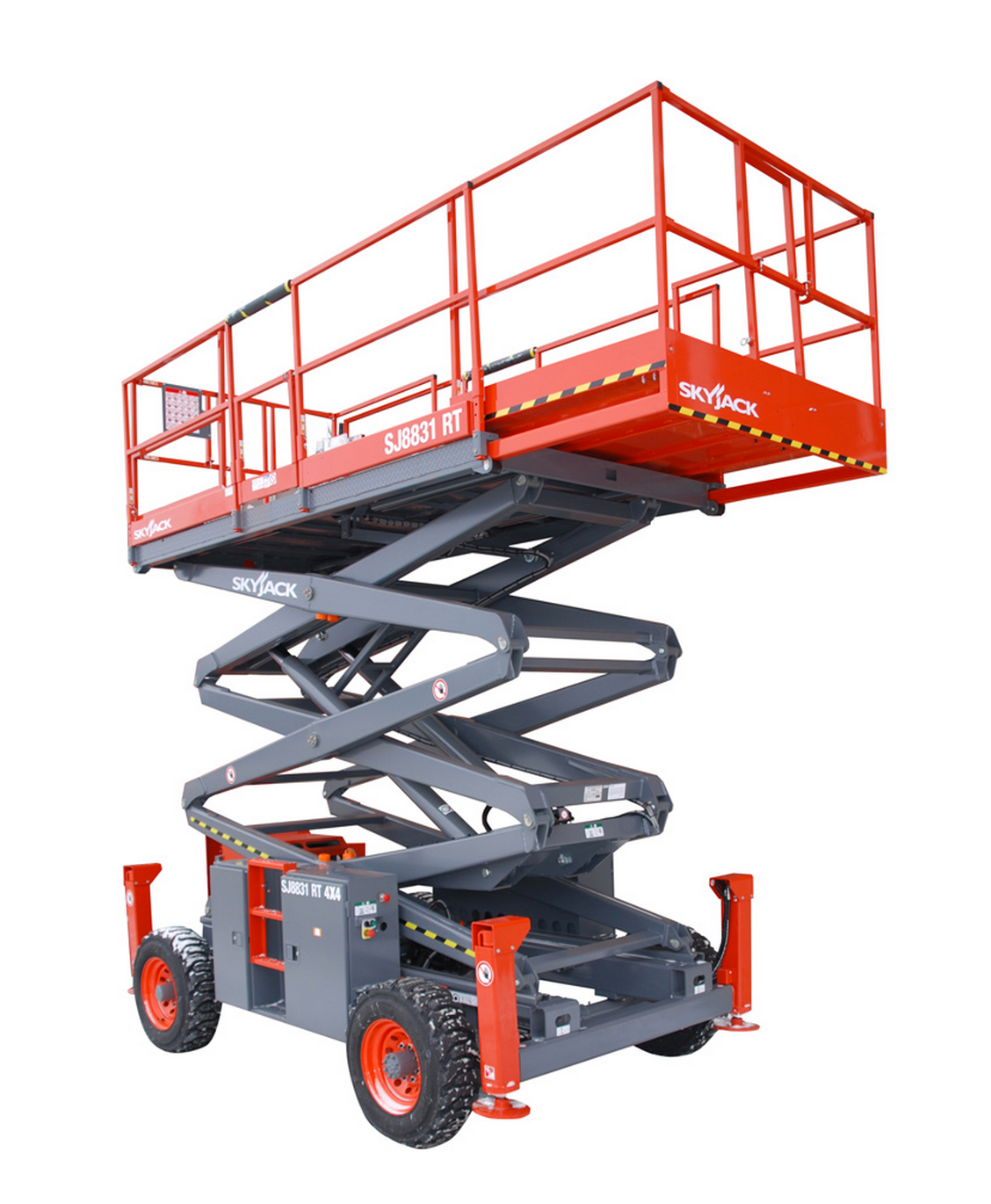

Skyjack SJ8831FRT Specs
Quick-reference specifications for the Skyjack SJ8831FRT scissor lift, compiled from published specifications.
- Working Height
- 37 ft11.3 m
- Operating Weight
- 9,940 lb4,509 kg
- Gradeability
- 30%
Performance 11 specs
| Working Height | 37 ft (11.3 m) |
|---|---|
| Raised Platform Height | 31 ft (9.4 m) |
| Lowered Platform Height | 59 in (1.5 m) |
| Max Platform Weight Capacity | 2,500 lb (1,134 kg) |
| Gradeability | 30% |
| Max Speed (Stowed) | 3.5 mph |
| Max Speed (Raised) | 0.4 mph |
| Lift Time (With Rated Load) | 58 sec |
| Lower Time (With Rated Load) | 44 sec |
| Turning Radius (Inside) | 158 in (4.0 m) |
| Turning Radius (Outside) | 189 in (4.8 m) |
Dimensions 9 specs
| Overall Width | 87 in (2.21 m) |
|---|---|
| Overall Length | 139 in (3.53 m) |
| Stowed Height (Rails Up) | 105 in (2.67 m) |
| Stowed Height (Rails Down) | 78.5 in (1.99 m) |
| Platform Width (Inside) | 67 in (1.70 m) |
| Platform Length (Inside) | 134 in (3.40 m) |
| Ground Clearance | 8 in (0.20 m) |
| Wheelbase | 89.3 in (2.27 m) |
| Extension Deck | 4 ft (1.22 m) |
Weight 1 spec
| Operating Weight | 9,940 lb (4,509 kg) |
|---|
Power / Engine 1 spec
| Engine (Diesel Option) | 29 hp Kubota D1305 |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic Generator | 3,500W (optional) |
|---|---|
| Tyre Size | 10 x 16.5 |
