Equipment Spec Sheet

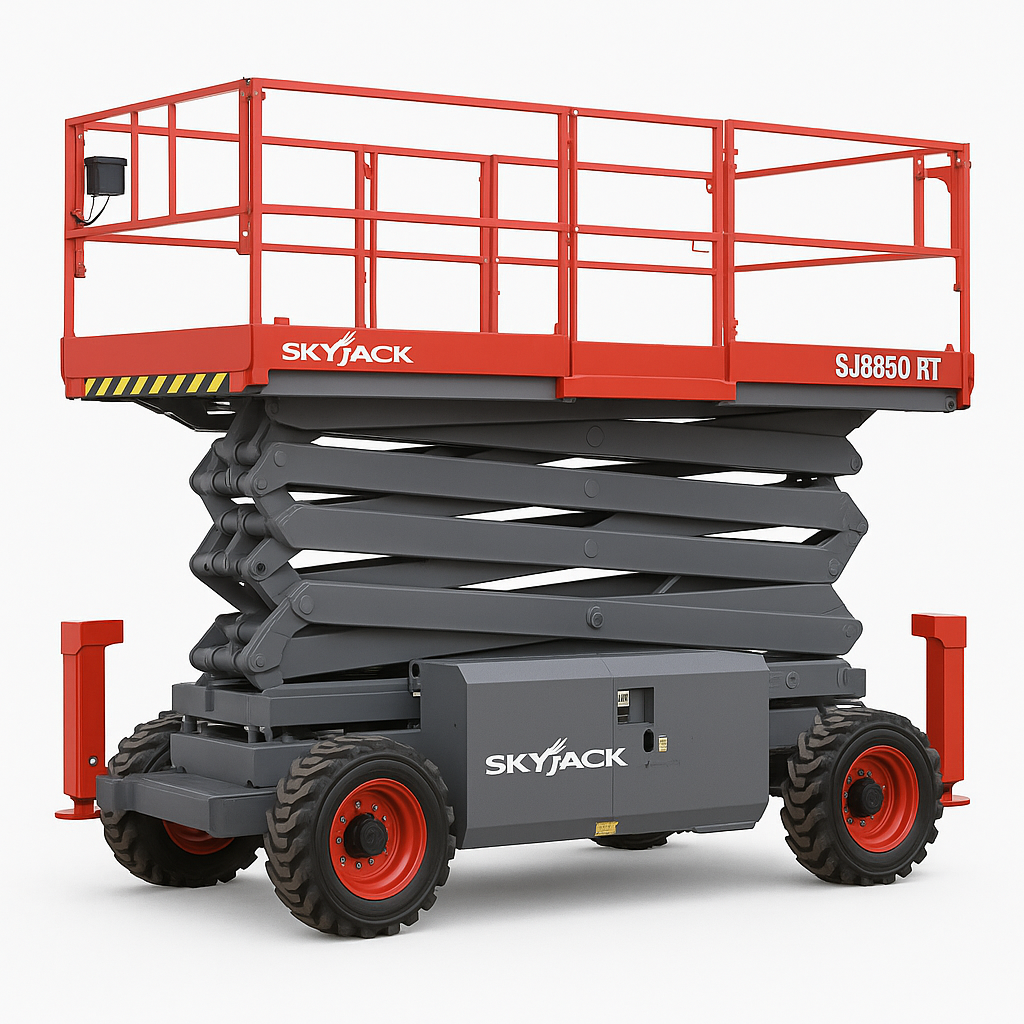

Skyjack SJ8850RT Spec Sheet
Quick-reference specifications for the Skyjack SJ8850RT. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working Height maximum: 56ft
Platform Height maximum: 50ft
Machine Weight (approx.): 11998lbs
Total Lift Capacity: 800lbs
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Working Height maximum | 56ft |
|---|---|
| Platform Height maximum | 50ft |
| Gradeability – stowed | 30% |
| Total Lift Capacity | 800lbs |
| Lift Capacity – Roll-out Extension Decks | 300lbs |
Dimensions
| Platform Size | 64.5” x 115.4” |
|---|---|
| Machine Height – stowed | 130” |
| Machine Width | 87” |
| Machine Length – stowed | 151” |
| Machine Length – deck extended | 190” |
| Ground Clearance (stowed) | 8” |
Weights & Electrical
| Machine Weight (approx.) | 11998lbs |
|---|
Hydraulics & Capacities
| Fuel Tank Capacity | 21 gallons |
|---|
