Scissor Lift · Skyjack

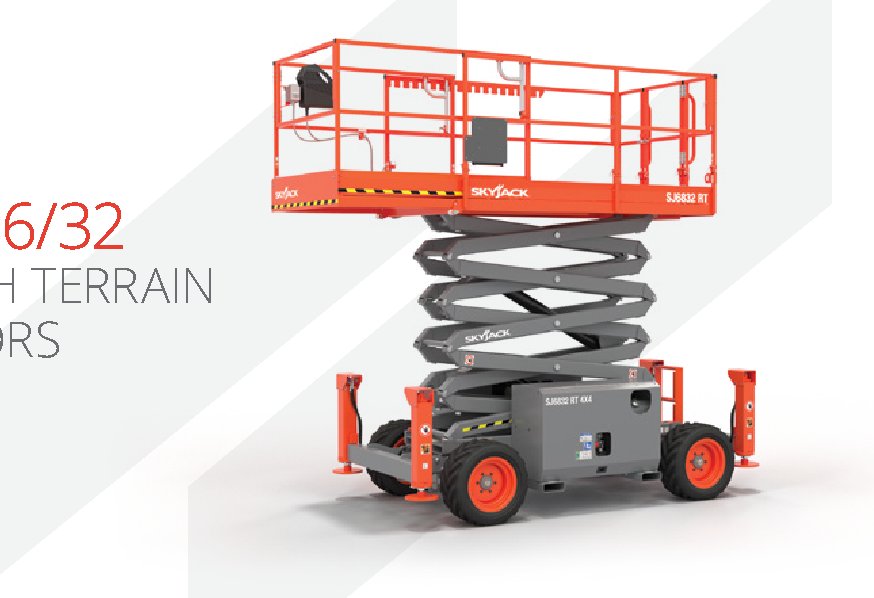

Skyjack SJII 6832 Specs
Quick-reference specifications for the Skyjack SJII 6832 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 1,000 lb454 kg
- Work Height
- 38 ft11.58 m
- Weight
- 7,590 lb3,443 kg
- Gradeability
- 40%
Performance 14 specs
| Work Height | 38 ft (11.58 m) |
|---|---|
| Extension Deck | 5 ft (1.52 m) |
| Gradeability | 40% |
| Turning Radius (Inside) | 60 in (1.52 m) |
| Turning Radius (Outside) | 156 in (3.96 m) |
| Lift Time (With Rated Load) | 39 sec |
| Lower time (With Rated Load) | 36 sec |
| Drive Speed (Stowed) | 3.8 mph (6.1 km/h) |
| Drive Speed (Raised) | 0.4 mph (0.6 km/h) |
| Capacity (Overall) | 1,000 lb (454 kg) |
| Distributed Capacity (Main Platform) | 700 lb (318 kg) |
| Distributed Capacity (Extension Deck) | 300 lb (136 kg) |
| Local Floor Load (With Rated Load) | 216 psi (1,500 kPa) |
| Overall Floor Load (With Rated Load) | 200 psf (976 kg/m²) |
Dimensions 10 specs
| Raised Platform Height | 32 ft (9.75 m) |
|---|---|
| Lowered Platform Height | 54 in (1.37 m) |
| Overall Width | 69.5 in (1.76 m) |
| Overall Length | 107 in (2.72 m) |
| Stowed Height (Rails Up) | 99 in (2.51 m) |
| Stowed Height (Rails Down) | 69 in (1.75 m) |
| Platform Width (Inside Dimension) | 56 in (1.42 m) |
| Platform Length (Inside Dimension) | 96 in (2.44 m) |
| Ground Clearance | 8 in (0.20 m) |
| Wheelbase | 80.5 in (2.04 m) |
Weight 1 spec
| Weight | 7,590 lb (3,443 kg) |
|---|
Power / Engine 1 spec
| Diesel Engine | 24.8 HP Kubota |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank | 23 gal (87 L) |
|---|---|
| Hydraulic Reservoir | 23 gal (87 L) |
