Scissor Lift · Skyjack

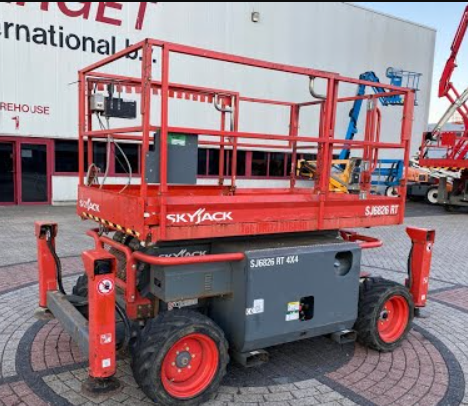

Skyjack SJIII 6826 Specs
Quick-reference specifications for the Skyjack SJIII 6826 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 1,250 lb567 kg
- Work Height
- 32 ft9.75 m
- Weight
- 6,460 lb2,930 kg
- Gradeability
- 45%
Performance 14 specs
| Work Height | 32 ft (9.75 m) |
|---|---|
| Extension Deck | 5 ft (1.52 m) |
| Gradeability | 45% |
| Turning Radius (Inside) | 60 in (1.52 m) |
| Turning Radius (Outside) | 156 in (3.96 m) |
| Lift Time (With Rated Load) | 36 sec |
| Lower time (With Rated Load) | 36 sec |
| Drive Speed (Stowed) | 3.8 mph (6.1 km/h) |
| Drive Speed (Raised) | 0.4 mph (0.6 km/h) |
| Capacity (Overall) | 1,250 lb (567 kg) |
| Distributed Capacity (Main Platform) | 950 lb (431 kg) |
| Distributed Capacity (Extension Deck) | 300 lb (136 kg) |
| Local Floor Load (With Rated Load) | 190 psi (1,310 kPa) |
| Overall Floor Load (With Rated Load) | 170 psf (830 kg/m²) |
Dimensions 11 specs
| Raised Platform Height | 26 ft (7.92 m) |
|---|---|
| Lowered Platform Height | 48.5 in (1.23 m) |
| Overall Width | 69.5 in (1.76 m) |
| Overall Length | 107 in (2.72 m) |
| Stowed Height (Rails Up) | 93.5 in (2.38 m) |
| Stowed Height (Rails Down) | 63.5 in (1.61 m) |
| Platform Width (Inside Dimension) | 56 in (1.42 m) |
| Platform Length (Inside Dimension) | 96 in (2.44 m) |
| Ground Clearance | 8 in (0.20 m) |
| Wheelbase | 80.5 in (2.04 m) |
| Tire Size | 26 x 12 |
Weight 1 spec
| Weight | 6,460 lb (2,930 kg) |
|---|
Power / Engine 1 spec
| Diesel Engine | 24.8 HP Kubota |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank | 23 gal (87 L) |
|---|---|
| Hydraulic Reservoir | 23 gal (87 L) |
