Scissor Lift · Skyjack

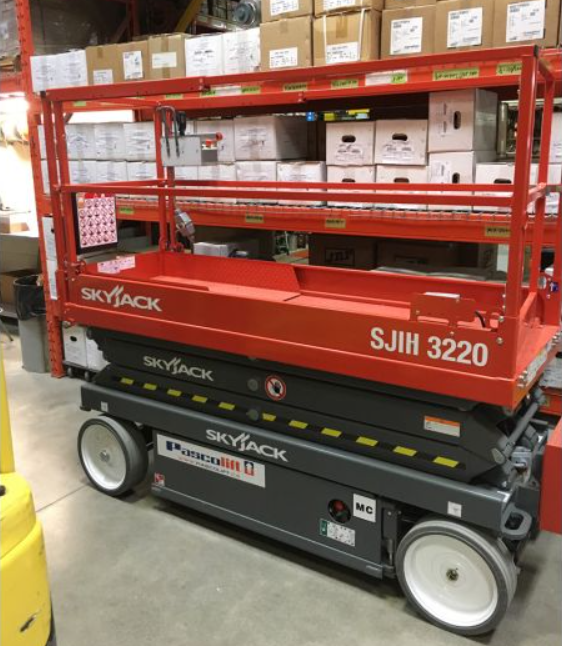

Skyjack SJIII 3220 Specs
Quick-reference specifications for the Skyjack SJIII 3220 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 900 lb408 kg
- Work Height
- 26 ft7.92 m
- Weight
- 3,510 lb1,592 kg
- Gradeability
- 30%
Performance 17 specs
| Solid rubber, non-marking tires | 800W AC inverter |
|---|---|
| Work Height | 26 ft (7.92 m) |
| Extension Deck (Roll Out) | 3 ft (0.91 m) |
| Gradeability | 30% |
| Turning Radius (Inside) | 50 in (1.27 m) |
| Turning Radius (Outside) | 108 in (2.74 m) |
| Lift Time (With Rated Load) | 33 sec |
| Lower time (With Rated Load) | 29 sec |
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) |
| Capacity (Overall) | 900 lb (408 kg) |
| Distributed Capacity (Main Platform) | 600 lb (273 kg) |
| Distributed Capacity (Extension Deck) | 300 lb (136 kg) |
| Local Floor Load (With Rated Load) | 130 psi (897 kPa) |
| Overall Floor Load (With Rated Load) | 245 psf (12 kPa) |
| Maximum # of Persons | 2 |
| Wind Rating | 28 mph (12.5 m/s) |
Dimensions 11 specs
| Raised Platform Height | 20 ft (6.10 m) |
|---|---|
| Lowered Platform Height | 38 in (0.97 m) |
| Overall Width | 32 in (0.81 m) |
| Overall Length | 91.5 in (2.32 m) |
| Stowed Height (Rails Up) | 77.5 in (1.97 m) |
| Platform Width (Inside Dimension) | 28 in (0.71 m) |
| Platform Length (Inside Dimension) | 84 in (2.13 m) |
| Ground Clearance (Stowed) | 3.5 in (8.89 cm) |
| Ground Clearance (Raised) | 0.75 in (1.90 cm) |
| Wheelbase | 69 in (1.75 m) |
| Tire Size | 16 x 5 x 12 |
Weight 1 spec
| Weight | 3,510 lb (1,592 kg) |
|---|
