Scissor Lift · Skyjack

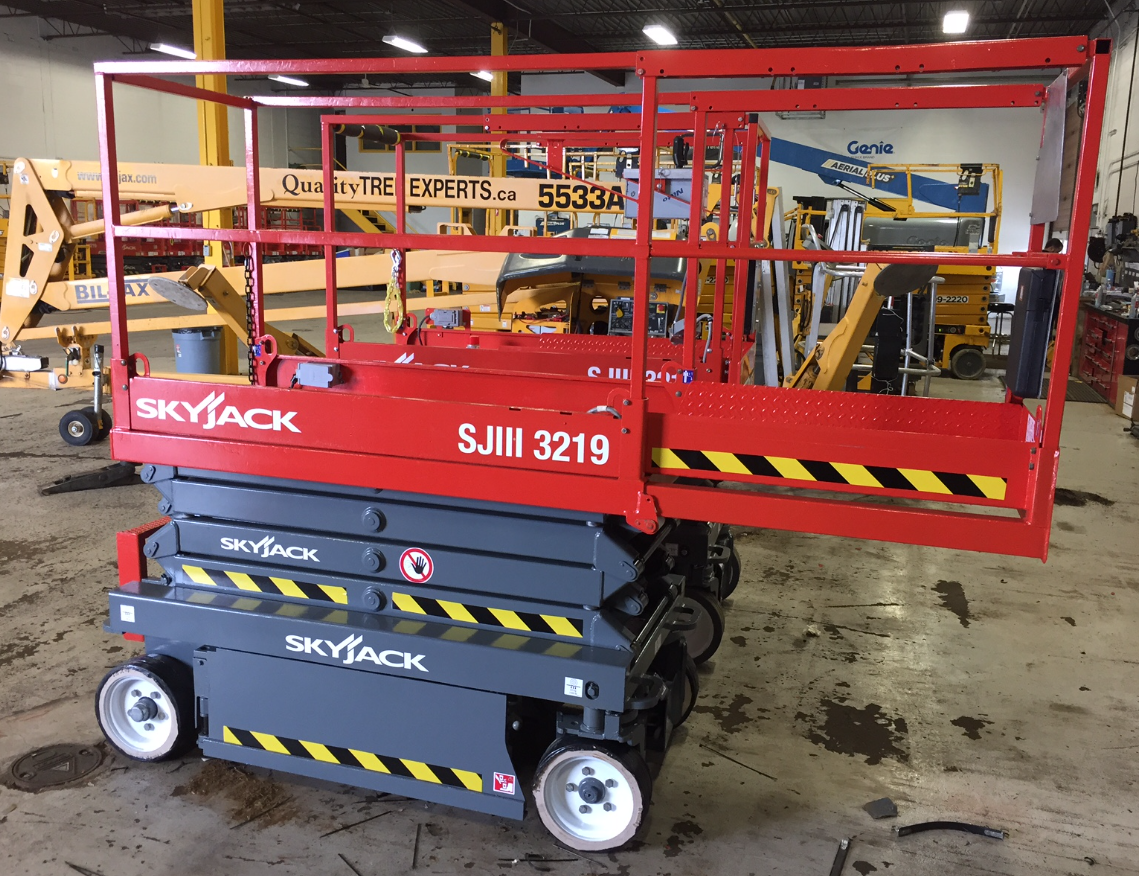

Skyjack SJIII 3219 Specs
Quick-reference specifications for the Skyjack SJIII 3219 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 550 lb249 kg
- Work Height
- 25 ft7.62 m
- Weight
- 2,580 lb1,170 kg
- Gradeability
- 30%
Performance 15 specs
| Work Height | 25 ft (7.62 m) |
|---|---|
| Extension Deck (Roll Out) | 3 ft (0.91 m) |
| Gradeability | 30% |
| Turning Radius (Outside) | 66 in (1.68 m) |
| Lift Time (With Rated Load) | 25 sec |
| Lower time (With Rated Load) | 29 sec |
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) |
| Capacity (Overall) | 550 lb (249 kg) |
| Distributed Capacity (Main Platform) | 300 lb (136 kg) |
| Distributed Capacity (Extension Deck) | 250 lb (113 kg) |
| Local Floor Load (With Rated Load) | 110 psi (759 kPa) |
| Overall Floor Load (With Rated Load) | 201 psf (10 kPa) |
| Maximum # of Persons | 2 |
| Wind Rating | 28 mph (12.5 m/s) |
Dimensions 11 specs
| Raised Platform Height | 19 ft (5.79 m) |
|---|---|
| Lowered Platform Height | 39 in (0.99 m) |
| Overall Width | 32 in (0.81 m) |
| Overall Length | 70 in (1.78 m) |
| Stowed Height (Rails Up) | 78.5 in (1.99 m) |
| Stowed Height (Rails Down) | OPT 64.5 in (1.64 m) |
| Platform Width (Inside Dimension) | 26 in (0.66 m) |
| Platform Length (Inside Dimension) | 64 in (1.63 m) |
| Ground Clearance (Stowed) | 2.375 in (6.03 cm) |
| Ground Clearance (Raised) | 0.7 in (1.78 cm) |
| Wheelbase | 55 in (1.40 m) |
Weight 1 spec
| Weight | 2,580 lb (1,170 kg) |
|---|
