Scissor Lift · Skyjack

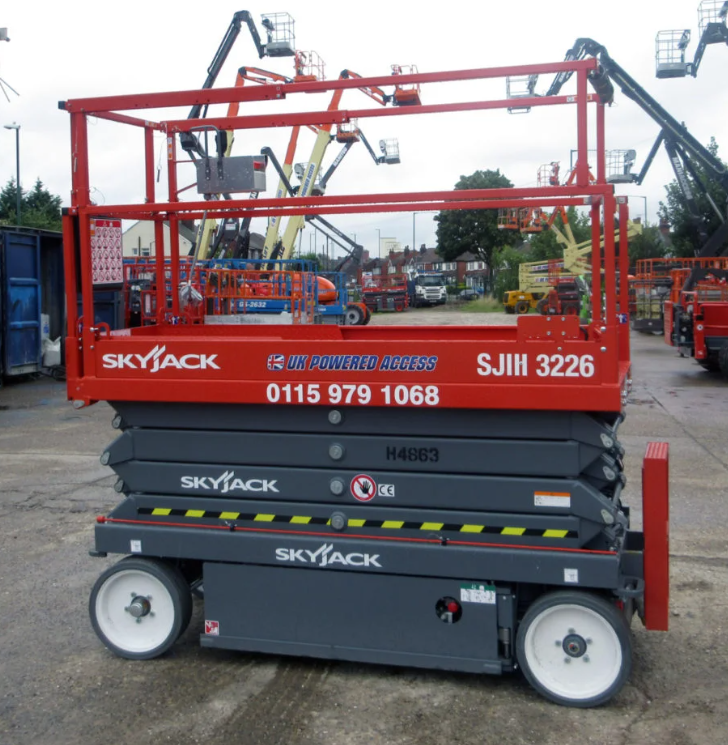

Skyjack SJIII 3226 Specs
Quick-reference specifications for the Skyjack SJIII 3226 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity (Overall)
- 500 lb227 kg
- Work Height
- 32 ft9.8 m
- Weight
- 4,135 lb1,876 kg
- Gradeability
- 25%
Performance 10 specs
| Work Height | 32 ft (9.8 m) |
|---|---|
| Extension Deck (Roll Out) | 3 ft (0.9 m) |
| Gradeability | 25% |
| Turning Radius (Inside) | 50 in (1.3 m) |
| Turning Radius (Outside) | 108 in (2.7 m) |
| Lift Time (With Rated Load) | 56 sec |
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) |
| Capacity (Overall) | 500 lb (227 kg) |
| Maximum # of Persons | 2 |
Dimensions 10 specs
| Raised Platform Height | 26 ft (7.9 m) |
|---|---|
| Lowered Platform Height | 45 in (1.1 m) |
| Overall Width | 32 in (0.8 m) |
| Overall Length | 91.5 in (2.3 m) |
| Stowed Height (Rails Up) | 84.7 in (2.2 m) |
| Platform Width (Inside Dimension) | 28 in (0.7 m) |
| Platform Length (Inside Dimension) | 84 in (2.1 m) |
| Ground Clearance (Stowed) | 3.5 in (8.9 cm) |
| Ground Clearance (raised) | 0.75 in (1.9 cm) |
| Wheelbase | 69 in (1.8 m) |
Weight 1 spec
| Weight | 4,135 lb (1,876 kg) |
|---|
