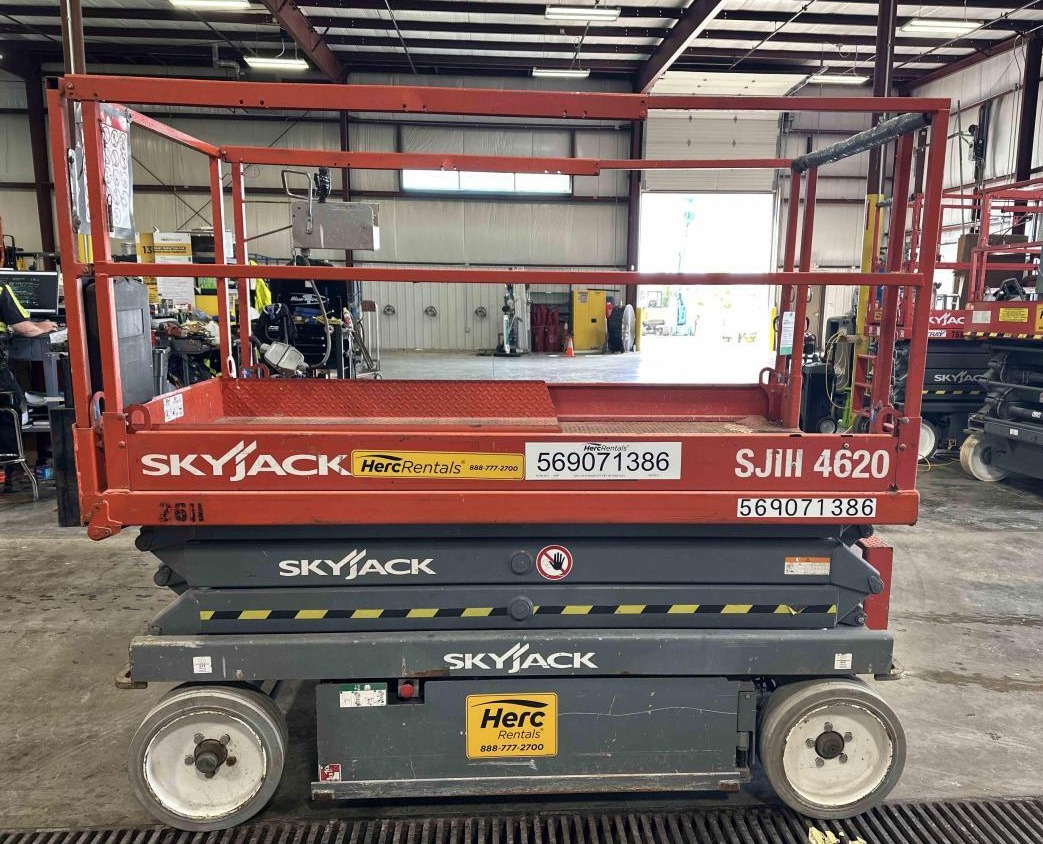

Skyjack SJIII 4620 Spec Sheet
Quick-reference specifications for the Skyjack SJIII 4620. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B Raised Platform Height: 20’ (6.1 m)
D Overall Width: 46” (1.2 m)
SJIII 4620 also features a stowed height of only: 77”,
Capacity (Overall): 1,300 lbs (590 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| gradeability. Boasting an industry leading | 1300 lb capacity, the |
|---|---|
| B Raised Platform Height | 20’ (6.1 m) |
| C Lowered Platform Height | 38” (1.0 m) |
| Gradeability | 25% |
| Turning Radius (Inside) | 47.5” (1.2 m) |
| Turning Radius (Outside) | 93.5” (2.4 m) |
| Capacity (Overall) | 1,300 lbs (590 kg) |
Dimensions
| SJIII 4620 also features a stowed height of only | 77”, |
|---|---|
| A Work Height | 26’ (7.9 m) |
| D Overall Width | 46” (1.2 m) |
| E Overall Length | 91” (2.3 m) |
| F Stowed Height (Rails Up) | 77” (2.0 m) |
| G Stowed Height (Rails Down) OPT | 63.4” (1.6 m) |
| H Platform Width (Inside Dimension) | 42” (1.1 m) |
| I Platform Length (Inside Dimension) | 84” (2.1 m) |
| Ground Clearance (Stowed) | 3.5” (8.9 cm) |
| Ground Clearance (raised) | 0.75” (1.9 cm) |
| Wheelbase | 69” (1.8 m) |
Weights & Electrical
| Weight | 4,100 lbs (1,860 kg) |
|---|---|
| skyjack@skyjack.com | |
| www.skyjack.com Printed In Canada | 07/08 |
Powertrain & Systems
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
|---|---|
| Drive Speed (Raised) | 0.6 mph (1 km/h) |
