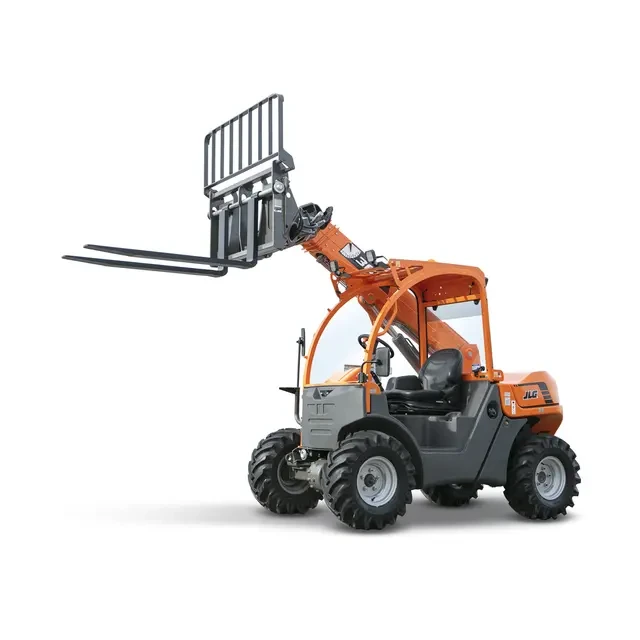

SkyTrak 3013 Spec Sheet
Quick-reference specifications for the SkyTrak 3013. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 2,700 lb
Maximum Lift Height 13 ft: 1 in.
Maximum Forward Reach 7 ft: 1 in.
Operating Weight: 5,280 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 2,700 lb |
|---|---|
| Maximum Lift Height 13 ft | 1 in. |
| Maximum Forward Reach 7 ft | 1 in. |
| Top Travel Speed | 10.5 mph |
| Drawbar Pull (loaded) | 2,623 lb |
| Outside Turning Radius | 117 in. |
Dimensions
| Load at Max Height | 1,555 lb |
|---|
Weights & Electrical
| Load at Max Reach | 1,200 lb |
|---|---|
| Retracted | 4.5 sec |
| Operating Weight | 5,280 lb |
| Displacement | 91.2 cu in. |
Powertrain & Systems
| Gross Power Basic | 24.8 hp |
|---|---|
| Standard 11.0/65 x | 12 Pneumatic Ag Tread Tires |
| Longitudinal Stability Indication System Steering | 2-Wheel |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 14.5 gal |
|---|---|
| Capacity | 8.5 gal |
