Aerial Lift · Snorkel

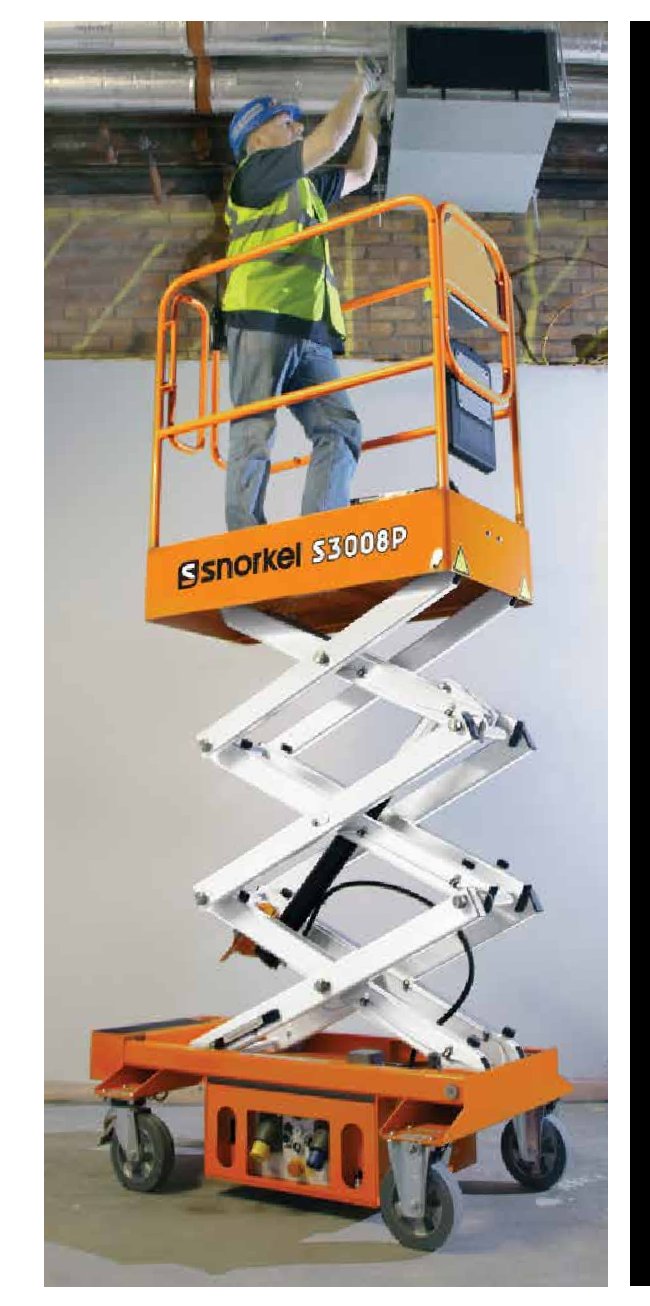

Snorkel S3008P Specs
Quick-reference specifications for the Snorkel S3008P aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 227 kg
- Max. working height
- 4.5 m
- Weight
- 350 kg
Performance 4 specs
| Max. working height | 4.5 m |
|---|---|
| Platform capacity (SWL) | 227 kg |
| Max. wind speed | 0 m/s |
| Raise/lower time | 13/17 sec |
Dimensions 5 specs
| Max. platform height (A) | 2.5 m |
|---|---|
| Platform size (outside) | 1.1 m x 0.52 m |
| Overall width (B) | 0.75 m |
| Overall length (C) | 1.19 m |
| Stowed height (D) | 1.8 m |
Weight 1 spec
| Weight | 350 kg |
|---|
Power / Engine 1 spec
| Power source | 12 V DC battery |
|---|
