Aerial Lift · Snorkel

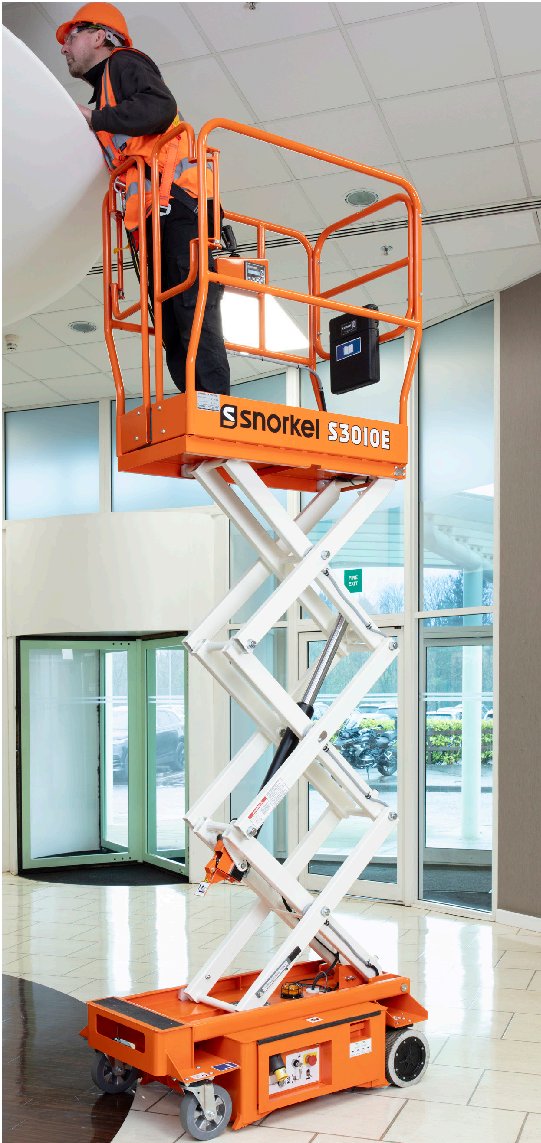

Snorkel S3010E Specs
Quick-reference specifications for the Snorkel S3010E aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 215 kg
- Max. Working Height
- 5.00 m
- Weight
- 542 kg
- Gradeability
- 25%
Performance 13 specs
| Max. Working Height | 5.00 m |
|---|---|
| Platform Capacity | 215 kg |
| Max. Wind Speed | 0.0 m/s |
| Max. Drive Speed (Stowed) | 2.8 km/h |
| Max. Drive Speed (Elevated) | 0.58 km/h |
| Raise/Lower Time | 18 / 25 sec |
| Gradeability | 25% |
| Max. Operating Slope | 2° |
| Inside Turning Radius | 0.0 m |
| Outside Turning Radius | 1.4 m |
| Tyres | 230 mm dia. non-marking solid rubber |
| Parking Brake | 2-wheel automatic |
| Drive System | DC direct drive |
Dimensions 7 specs
| Max. Platform Height (A) | 3.06 m |
|---|---|
| Platform Size | 1.09 m x 0.53 m |
| Overall Length (B) | 1.26 m |
| Overall Width (C) | 0.77 m |
| Stowed Height (D) | 1.82 m |
| Ground Clearance (Stowed) | 06 m |
| Max. Drive Height | 3.06 m |
Weight 1 spec
| Weight | 542 kg |
|---|
Power / Engine 1 spec
| Charger | 100–240VAC; 50–60Hz Auto, 30amp |
|---|
