Aerial Lift · Snorkel

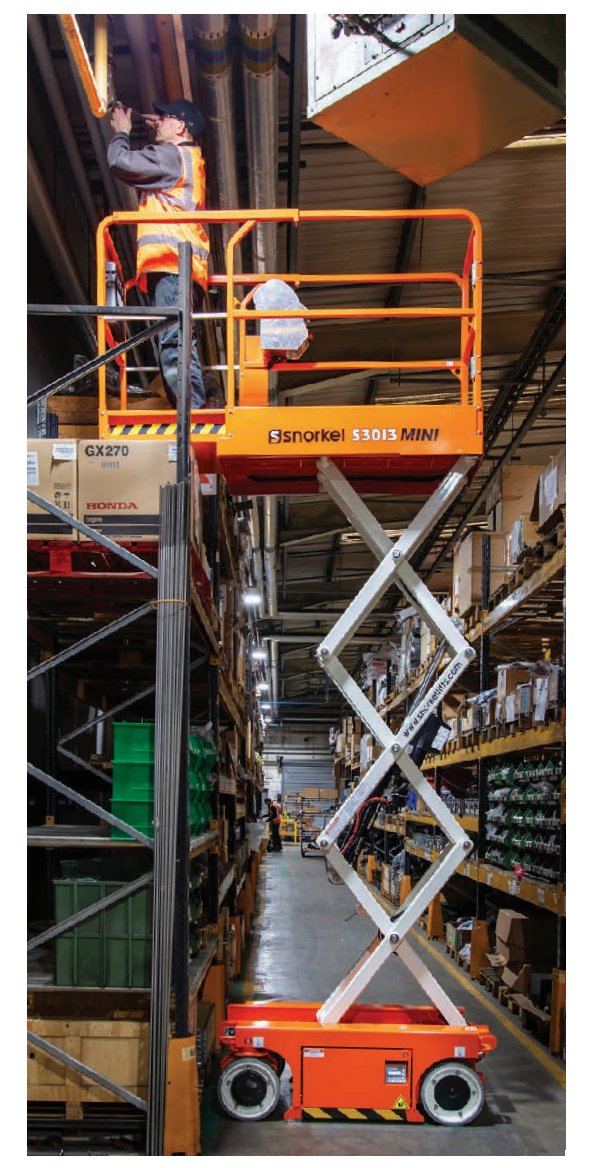

Snorkel S3013 MINI Specs
Quick-reference specifications for the Snorkel S3013 MINI aerial lift, taken from the manufacturer’s spec sheet.
- Max. Working Height
- 19 ft5.79 m
Performance 4 specs
| Max. Working Height | 19 ft (5.79 m) |
|---|---|
| Max. Drive Speed (Stowed) | w/ dual locks |
| Max. Drive Speed (Elevated) | 0.4 mph (0.6 km/h) |
| Drive System | 2WD – electric (24 V) |
Dimensions 6 specs
| Max. Platform Height (A) | 13 ft (3.96 m) |
|---|---|
| Platform Size (Stowed) | 29.5 in x 52 in (0.74 m x 1.32 m) |
| Platform Size (Extended) | 29.5 in x 76 in (0.74 m x 1.93 m) |
| Deck Extension Length | 24 in (0.61 m) |
| Overall Length (B) | 56.75 in (1.44 m) |
| Ground Clearance (Stowed) | 2.63 in (67 mm) |
Power / Engine 1 spec
| Charger | 100–240VAC; 50–60Hz, 25amp |
|---|
