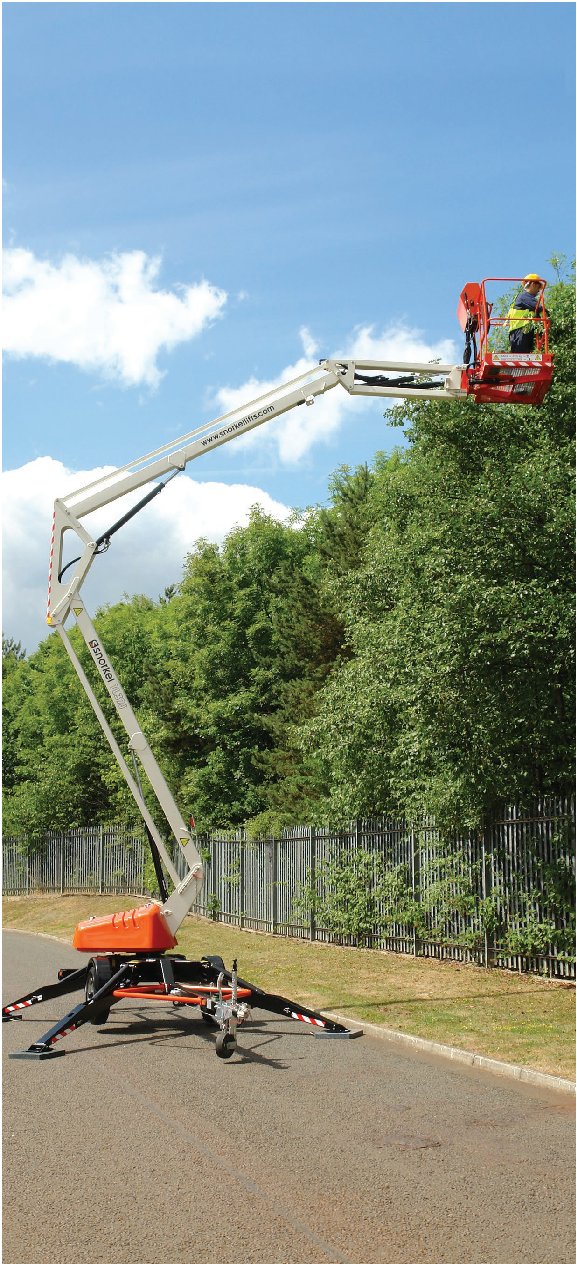

Snorkel TL37J Specs

Quick-reference specifications for the Snorkel TL37J aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform capacity (SWL): 215 kg
Max. working height: 12.9 m

Performance 8 specs

Max. working height	12.9 m
Max. working outreach	5.6 m
Platform capacity (SWL)	215 kg
Max. wind speed	12.5 m/s
Jib arc	130º
Platform rotation	160º
Turret rotation (non-continuous)	640º
Tires	185R14C

Dimensions 8 specs

Max. platform height	10.9 m
Platform width (C)	1.14 m
Platform depth (D)	0.7 m
Outrigger footprint (A x B)	3.9 m x 3.3 m
Towing width (E)	1.61 m
Towing length (F)	6.4 m
Stowed height (G)	2.1 m
Jib length	1.3 m

Weight 1 spec

Weight (DC battery)	1,586 kg
