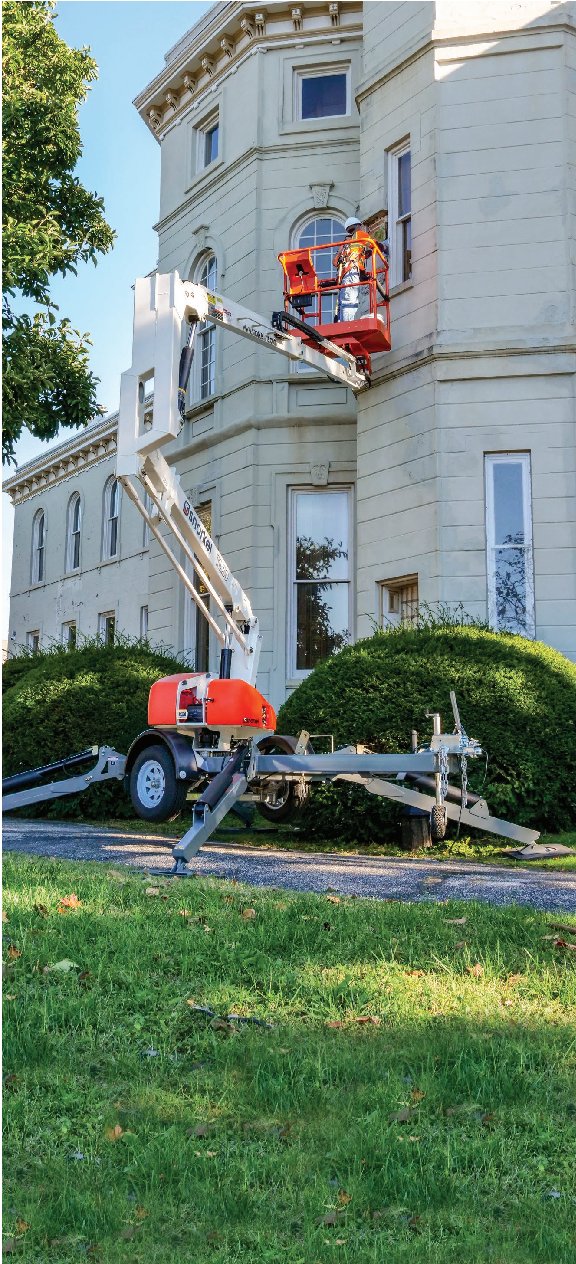

Snorkel TL39 Specs

Quick-reference specifications for the Snorkel TL39 aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform capacity (SWL): 215 kg
Max. working height: 13.5 m

Performance 6 specs

Max. working height	13.5 m
Max. working outreach	6.4 m
Platform capacity (SWL)	215 kg
Max. wind speed	12.5 m/s
Turret rotation (non-continuous)	540º
Tires	185R14C

Dimensions 7 specs

Max. platform height	11.5 m
Platform width (C)	1.24 m
Platform depth (D)	0.75 m
Outrigger footprint (A x B)	4.0 m x 3.6 m
Towing width (E)	1.61 m
Towing length (F)	5.1 m
Stowed height (G)	2.01 m

Weight 1 spec

Weight (DC battery)	1,680 kg

Power / Engine 1 spec

Power source	24 V DC battery
