Aerial Lift · Snorkel

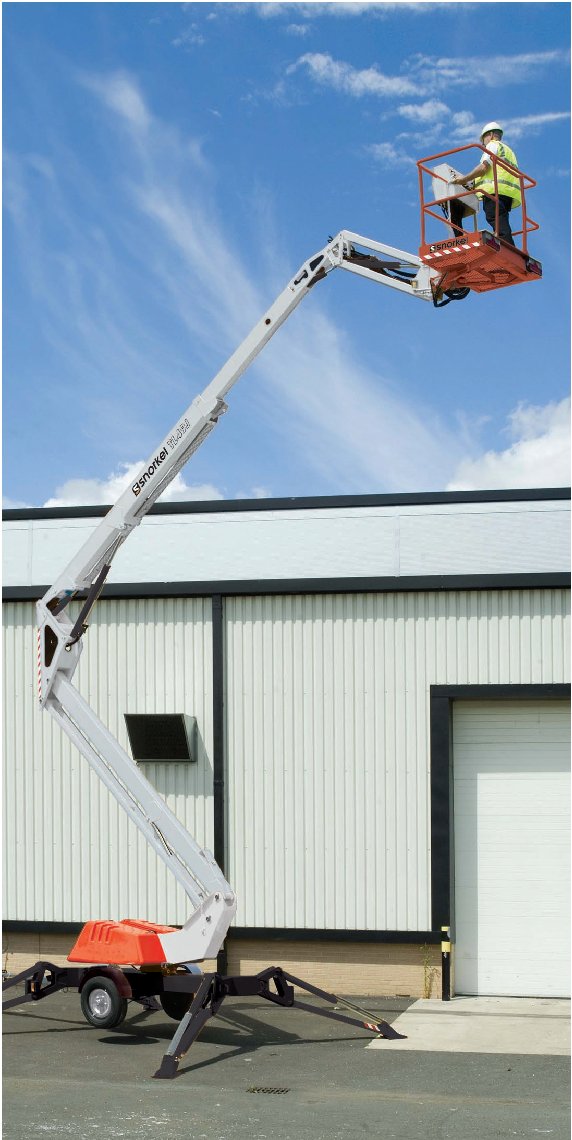

Snorkel TL49J Specs
Quick-reference specifications for the Snorkel TL49J aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 425 lb
- Max. working height
- 54 ft 8 in
Performance 7 specs
| Max. working height | 54 ft 8 in |
|---|---|
| Max. horizontal reach | 27 ft 10 in |
| Platform capacity (SWL) | 425 lb |
| Max. wind speed | 28 mph |
| Jib arc | 130º |
| Platform rotation | 90º |
| Superstructure rotation (non-continuous) | 680º |
Dimensions 8 specs
| Max. platform height | 48 ft 8 in |
|---|---|
| Platform width (C) | 3 ft 9 in |
| Platform depth | 2 ft 4 in |
| Stabilizer footprint (A x B) | 15 ft 9 in x 15 ft 5 in |
| Towing length (E) | 23 ft 3 in |
| Towing width (F) | 5 ft 8 in |
| Stowed height (D) | 7 ft 2 in |
| Jib length | 4 ft 3 in |
Weight 1 spec
| Weight (DC battery) | 5,269 lb |
|---|
Power / Engine 2 specs
| Power source | 24 V DC battery |
|---|---|
| Battery | 4 x 6 V 195 Ah |
