Boom Lift · Terex

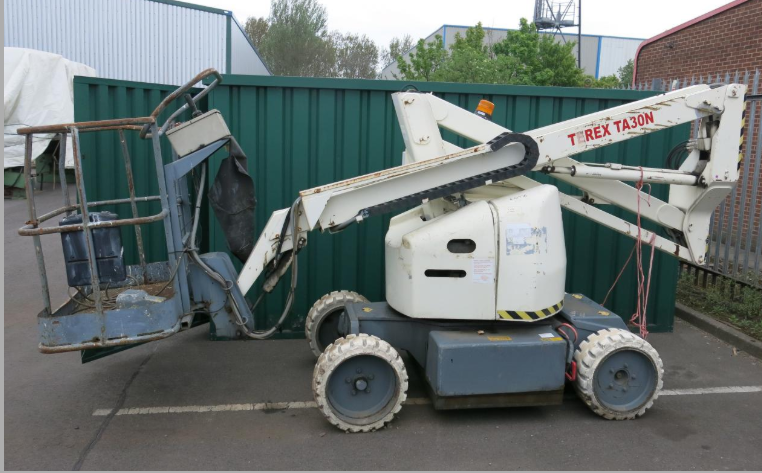

Terex TA30N Specs
Quick-reference specifications for the Terex TA30N boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Unrestricted)
- 500 lb227 kg
- Platform Height (Maximum)
- 30 ft 0 in9.14 m
- Working Height (Maximum)
- 36 ft 0 in10.97 m
- Gradeability (on hard surface)
- 20%
Performance 13 specs
| Working Height (Maximum) | 36 ft 0 in (10.97 m) |
|---|---|
| Horizontal Reach | 21 ft 8 in (6.60 m) |
| Platform Capacity (Unrestricted) | 500 lb (227 kg) |
| Rated Number of Occupants in Platform | 2 |
| Turret (Superstructure) Rotation | 350°, non-continuous rotation |
| Turning Radius – Inside | 5 ft 6 in (1.68 m) |
| Turning Radius – Outside | 10 ft 2 in (3.09 m) |
| Travel Speed-Platform Stowed | 0 to 3.2 mph (0 to 5.15 kph) |
| Controls – Function | Proportional/ Hydraulic |
| Controls – Drive | Proportional/ Electric |
| Tires (Solid Non-marking) | 7.00 x 12 |
| Wind Speed Rating | 10 mph (16.09 km/h) |
| Gradeability (on hard surface) | 20% |
Dimensions 8 specs
| Platform Height (Maximum) | 30 ft 0 in (9.14 m) |
|---|---|
| Stowed Height | 6 ft 7 in (2.00 m) |
| Stowed Length | 15 ft 8 in (4.78 m) |
| Machine Width | 4 ft 0 in (1.22 m) |
| Platform Dimensions | 30 in x 48 in x 44 in (0.76 m x 1.22 m x 1.12 m) |
| WheelBase | 5 ft 2 in (1.57 m) |
| Wheel Track | 3 ft 4.5 in (1.01 m) |
| Ground Clearance | 4 in (0.10 m) |
Weight 3 specs
| Shipping Weight (Approx.) | 13,600 lb (6,169 kg) |
|---|---|
| Wheel Loading – Max. concentrated floor loading pressure | 56.3 psi ((3.88 bar) (3.96 kg-cm²)) |
| Wheel Loading – Wheel Load (maximum) | 4,923 lb (2,235 kg) |
Power / Engine 1 spec
| Power Source | 48 volts D.C. (8 @ 6 V-350AH) |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic System – Maximum Operating Pressure | 2200 psi ((152 bar) (155 kg-cm²)) |
|---|
