Boom Lift · Terex

Terex TA34N Specs

Quick-reference specifications for the Terex TA34N boom lift, compiled from published specifications.

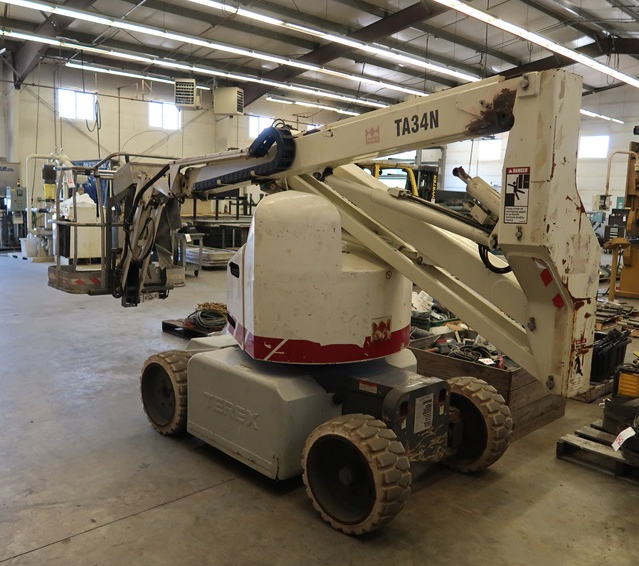

Terex TA34N
Platform Capacity
500 lb227 kg
Maximum Working Height
40 ft 7 in12.4 m

Performance 5 specs

Maximum Working Height 40 ft 7 in (12.4 m)
Maximum Cage Floor Height 34 ft (10.4 m)
Maximum Horizontal Reach 23 ft 3 in (7.1 m)
Platform Capacity 500 lb (227 kg)
Platform Width 48 in (1.22 m)

Dimensions 5 specs

Length – Stowed 16 ft 6 in (5.0 m)
Width – Stowed 4 ft (1.22 m)
Height – Stowed 6 ft 7 in (2.02 m)
Boom Type/Size AT/34.1 ft
Tire Size 22x9x16

Weight 1 spec

Unladen Weight 14,300 lb (6,486 kg)
