Boom Lift · Terex

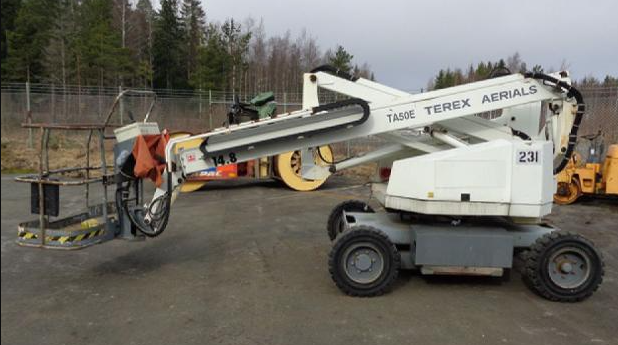

Terex TA50E Specs
Quick-reference specifications for the Terex TA50E boom lift, compiled from published specifications.
- Max Working Height
- 54.8 ft16.7 m
Performance 5 specs
| Max Platform Height | 54.8 ft (16.7 m) |
|---|---|
| Max Working Height | 54.8 ft (16.7 m) |
| Max Horizontal Reach | 29.9 ft (9.1 m) |
| Max Cage Floor Height | 48.2 ft (14.7 m) |
| Max Speed | 3 mph (5 km/h) |
Dimensions 7 specs
| Overall Length (Stowed) | 18.5 ft (5.64 m) |
|---|---|
| Overall Width (Stowed) | 6.1 ft (1.85 m) |
| Overall Height (Stowed) | 7.2 ft (2.2 m) |
| Outside Turning Radius | 13.1 ft (4 m) |
| Platform Length | 3.9 ft (1.2 m) |
| Platform Width | 2.3 ft (0.7 m) |
| Boom Type | AT/49 ft |
Weight 1 spec
| Operating/Gross Weight | 15,432 lb (7,000 kg) |
|---|
Power / Engine 2 specs
| Engine Type | Hatz diesel, 2-cylinder |
|---|---|
| Engine Displacement | 1,700 cc (104 cu in) |
