Boom Lift · Terex

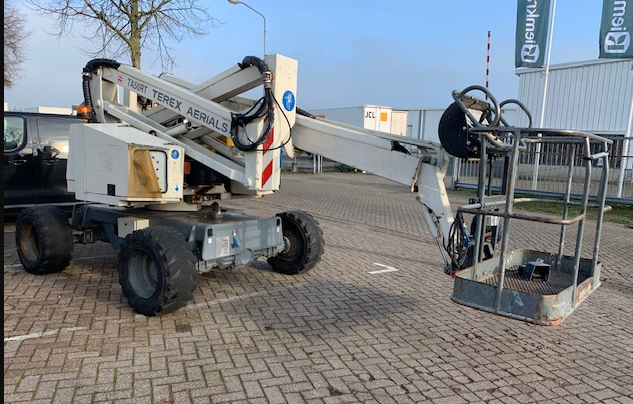

Terex TA50RT Specs
Quick-reference specifications for the Terex TA50RT boom lift, taken from the manufacturer’s spec sheet.
- Gradeability
- 30%17°
Performance 12 specs
| Platform (maximum) | 48 ft 6 in (14.8 m) |
|---|---|
| Horizontal Reach | 29 ft 10 in (9.1 m) |
| Load Capacity (maximum) | 500 lb (227 kg) |
| Platform Rotation | 130° |
| Turret Rotation | 355° Non-continuous |
| Turning radius – Inside | 11 ft 5 in (3.48 m) |
| Turning radius – Outside | 18 ft (5.5 m) |
| Travel Speed – Stowed | 0-3.0 mph (0-5.0 km/h) |
| Travel Speed – Elevated | 0-0.5 mph (0-0.75 km/h) |
| Gradeability | 30% (17°) |
| Controls – Boom Functions | Proportional |
| Controls – Drive | Proportional |
Dimensions 9 specs
| Height-Working (maximum) | 55 ft (16.8 m) |
|---|---|
| Length (overall) | 19 ft (5.8 m) |
| Width (maximum) | 7 ft 2 in (2.2 m) |
| Platform Dimensions | 27 in x 60 in (0.7 x 1.5 m) |
| Wheelbase | 6 ft 5 in (1.96 m) |
| Wheel Track | 7 ft 3 in (2.2 m) |
| Turret Tailswing | Zero @ 25 ft (7.6 m) |
| Tires | 12 x 16.5 Monofilled |
| Ground Clearance | 11 in (0.28 m) |
Weight 1 spec
| Approx. Shipping Weight | 15,400 lb (7000 kg) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 20 gal (75 L) |
|---|---|
| Reservoir Capacity | 18.9 gal (70 L) |
