Boom Lift · Terex

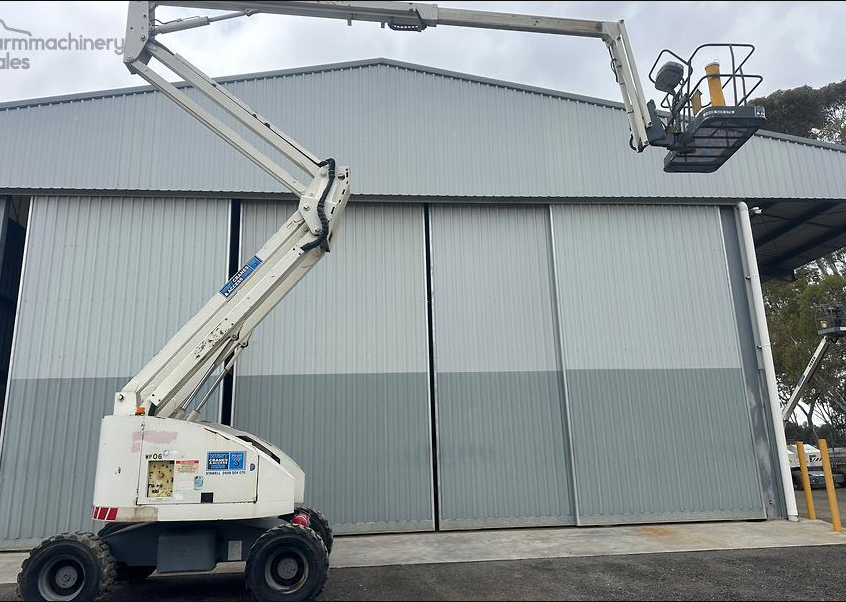

Terex TA60RT Specs
Quick-reference specifications for the Terex TA60RT boom lift, taken from the manufacturer’s spec sheet.
- Gradeability
- 45%25°
Performance 12 specs
| Platform (maximum) | 60 ft (18.3 m) |
|---|---|
| Horizontal Reach | 33 ft 9 in (10.3 m) |
| Load Capacity (maximum) | 500 lb (227 kg) |
| Platform Rotation | 180° |
| Turret Rotation | 360° Continuous |
| Turning radius – Inside | 16 ft 5 in (5 m) |
| Turning radius – Outside | 24 ft 6 in (7.46 m) |
| Travel Speed – Stowed | 0-3.0 mph (0-5.0 km/h) |
| Travel Speed – Elevated | 0-0.5 mph (0-0.75 km/h) |
| Gradeability | 45% (25°) |
| Controls – Boom Functions | Proportional |
| Controls – Drive | Proportional |
Dimensions 10 specs
| Height-Working (maximum) | 66 ft 7 in (20.3 m) |
|---|---|
| Length (overall) | 22 ft 5 in (6.8 m) |
| Width (maximum) | 7 ft 6 in (2.3 m) |
| Boom Angle – Above Horizontal | 72° |
| Boom Angle – Below Horizontal | 0° |
| Platform Dimensions | 36 in x 72 in (0.9 x 1.8 m) |
| Wheelbase | 7 ft 6 in (2.3 m) |
| Wheel Track | 7 ft 6 in (2.3 m) |
| Tires | 14 x 17.5 Monofilled |
| Ground Clearance | 17 in (0.43 m) |
Weight 1 spec
| Approx. Shipping Weight | 24,090 lb (10,950 kg) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 29 gal (110 L) |
|---|---|
| Reservoir Capacity | 29 gal (110 L) |
