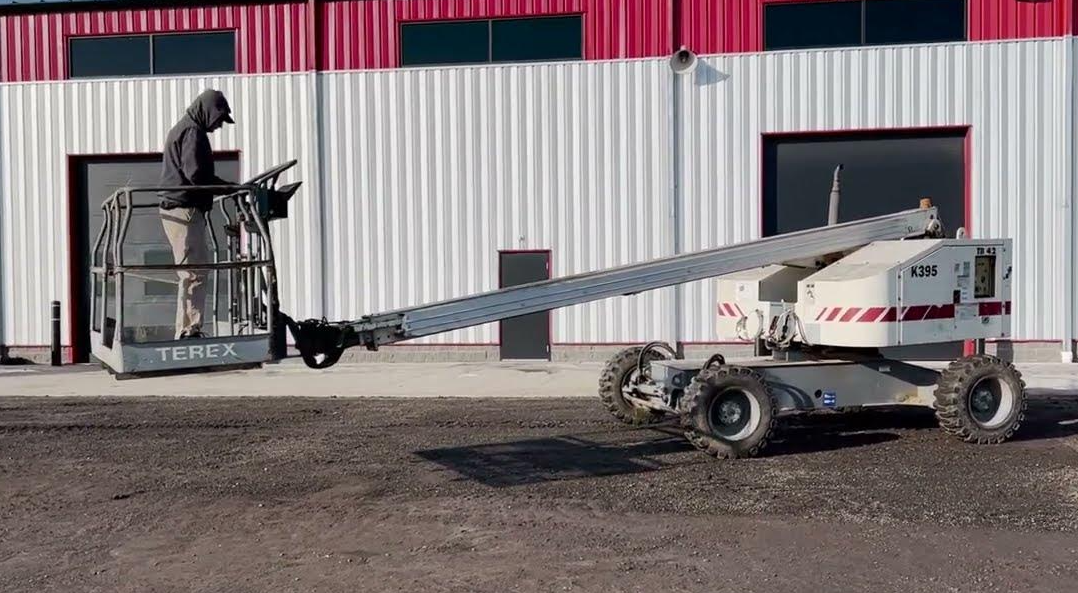

Terex TB42 Spec Sheet
Quick-reference specifications for the Terex TB42. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Load Capacity (maximum): 650 lbs. (295 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Load Capacity (maximum) | 650 lbs. (295 kg) |
|---|---|
| Load Capacity (maximum) | 600 lbs. (272 kg) |
| Turret Tailswing | 33” (0.84 m) |
| Turning Radius – Outside Curb | 16’ (4.88 m) |
| Travel Speed 0 – 3.0 mph (0 – | 4.83 km/h) |
Dimensions
| Height – Working (maximum) | 49’ 6” (15.09 m) |
|---|---|
| Length (stowed) | 25’ 10-3/4” (7.89 m) |
| Width (maximum) | 7’ 11” (2.41 m) |
| Std. Platform Dimensions | 72” x 36” x 44” |
| Opt. Platform Dimensions | 96” x 36” x 44” |
| Wheelbase | 8’ 0” (2.44 m) |
| Ground Clearance | 10.5” (0.27 m) |
Weights & Electrical
| OPTIONS | 8’ (2.44 m) Universal platform (In place of standard 6’ (1.83 m) – TB42 |
|---|---|
| Horizontal Reach | 37’ (11.28 m) |
| Wheel Track | 6’ 10” (2.08 m) |
| Approx. Shipping Weight | 13,050 lbs. (5920 kg) |
Powertrain & Systems
| LRG425 | 66 hp (49.2 kw) gasoline engine with dual fuel kit • Four wheel |
|---|---|
| Tires (Air Boss) 12 x 16.5 | 10 ply |
Hydraulics & Capacities
| Fuel Tank Capacity | 25 gal. (95 L) |
|---|---|
| Reservoir Capacity | 38 gal. (144 L) |
