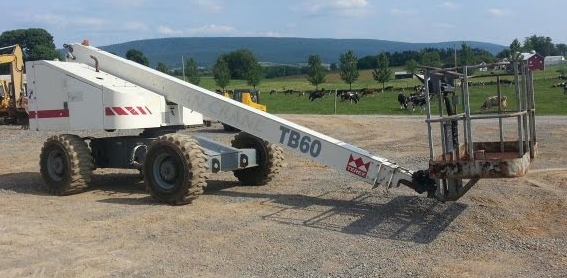

Terex TB60 Spec Sheet
Quick-reference specifications for the Terex TB60. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Load Capacity (maximum): 650 lbs. (295 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Load Capacity (maximum) | 650 lbs. (295 kg) |
|---|---|
| Load Capacity (maximum) | 600 lbs. (272 kg) |
| Turret Tailswing | 42” (1.07 m) |
| Turning Radius – Outside Curb | 16’ 9” (5.1 m) |
| Travel Speed 0 – 3.0 mph (0 – | 4.83 km/h) |
Dimensions
| Height – Working (maximum) | 66’ (20.12 m) |
|---|---|
| Length (overall) | 26’ 1-1/4” (7.96 m) |
| Width (maximum) | 7’ 11” (2.41 m) |
| Std. Platform Dimensions | 72” x 36” x 44” |
| Opt. Platform Dimensions | 96” x 36” x 44” |
| Wheelbase | 8’ 0” (2.44 m) |
| Ground Clearance | 10” (0.25 m) |
Weights & Electrical
| OPTIONS | 8′ (2.44 m) Universal platform (In place of standard 6′ (1.83 m) – TB60 |
|---|---|
| Horizontal Reach | 51’ 4-5/8” (15.66 m) |
| Wheel Track | 6’ 7” (2.01 m) |
| Approx. Shipping Weight 23,000 lbs. (10 | 443 kg) |
Powertrain & Systems
| Tires (monofilled) 15 x 19.5 | 13 P.R. |
|---|
Hydraulics & Capacities
| Fuel Tank Capacity | 40 gal. (151 L) |
|---|---|
| Reservoir Capacity | 52 gal. (197 L) |
