Boom Lift · Terex

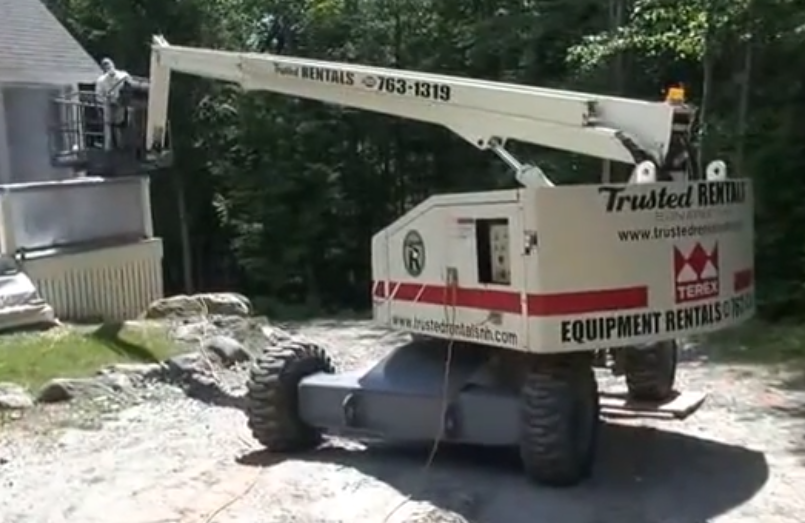

Terex TB50 Specs
Quick-reference specifications for the Terex TB50 boom lift, taken from the manufacturer’s spec sheet.
Performance 9 specs
| Horizontal Reach | 43 ft (13.11 m) |
|---|---|
| Load Capacity (maximum) | 500 lb (227 kg) |
| Platform Rotation | 160° |
| Turret Rotation | 360° Continuous |
| Turning Radius – Outside Curb | 16 ft (4.88 m) |
| Travel Speed | 0 – 3.0 mph (0 – 4.83 km/h) |
| Controls – Boom Functions | Proportional |
| Controls – Drive | Proportional |
| Tires (Air Boss) | 12 x 16.5 10 ply |
Dimensions 11 specs
| Height – Working (maximum) | 56 ft (17.07 m) |
|---|---|
| Height – Platform (maximum) | 50 ft (15.24 m) |
| Height – Stowed | 7 ft 1 in (2.16 m) |
| Length (stowed) | 28 ft 8-1/2 in (8.75 m) |
| Width (maximum) | 7 ft 11 in (2.41 m) |
| Boom Angle – Above Horizontal | 75° +15° Articulating |
| Std. Platform Dimensions | 72 in x 36 in x 44 in (1.83 m x 0.91 m x 1.12 m) |
| Wheelbase | 8 ft 0 in (2.44 m) |
| Wheel Track | 6 ft 10 in (2.08 m) |
| Turret Tailswing | 33 in (0.84 m) |
| Ground Clearance | 10.5 in (0.27 m) |
Weight 1 spec
| Approx. Shipping Weight | 15,900 lb (7212 kg) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 25 gal (95 L) |
|---|---|
| Reservoir Capacity | 38 gal (144 L) |
