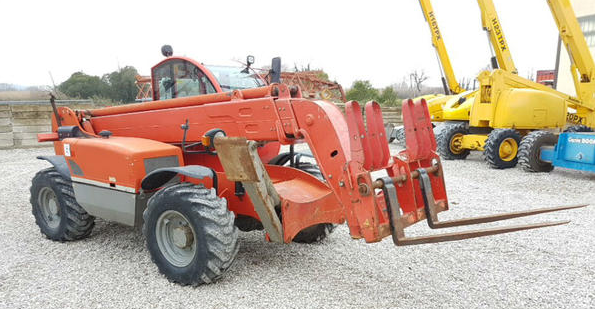

Terex Telelift 3512 Specs
Quick-reference specifications for the Terex Telelift 3512 telehandler, compiled from published specifications.
- Max Lift Capacity
- 7,716.18 lb3,500 kg
- Operating Weight
- 19,841.7 lb9,000 kg
Performance 8 specs
| Max Lift Capacity | 7,716.18 lb (3,500 kg) |
|---|---|
| Max Load At Max Height | 5,511.56 lb (2,500 kg) |
| Max Load At Max Reach | 1,763.7 lb (800 kg) |
| Max Forward Reach | 27.66 ft (8.43 m) |
| Max Lift Height | 39.77 ft (12.12 m) |
| Max Speed – Forward | 19.9 mph |
| Max Speed – Reverse | 19.9 mph |
| Nominal Load at COG | 8,157 lb (3.7 t) |
Dimensions 6 specs
| Length To Fork Face | 20.12 ft |
|---|---|
| Overall Height | 8.04 ft |
| Width Over Tires | 7.39 ft |
| Ground Clearance | 16.93 ft |
| Wheelbase | 9.03 ft |
| Turning Radius Outside Tires | 14.77 ft |
Weight 1 spec
| Operating Weight | 19,841.7 lb (9,000 kg) |
|---|
Power / Engine 6 specs
| Engine Model | BF4M2012 |
|---|---|
| Number of Cylinders | 4 |
| Gross Power | 81.5 hp (74.9 kW) |
| Power Measured @ | 2,500 rpm |
| Displacement | 3.4 L |
| Fuel Capacity | 24.4 gal (92.3 L) |
Hydraulics / Fluids 4 specs
| Pump Flow Capacity | 21.2 gal/min (80.2 L/min) |
|---|---|
| Relief Valve Pressure | 3,916.1 psi (269.8 bar) |
| Hydraulic System Fluid Capacity | 23.8 gal (90.1 L) |
| Transmission Type | hydrostatic 2-speed mechanical gearbox |
