Forklift · Yale

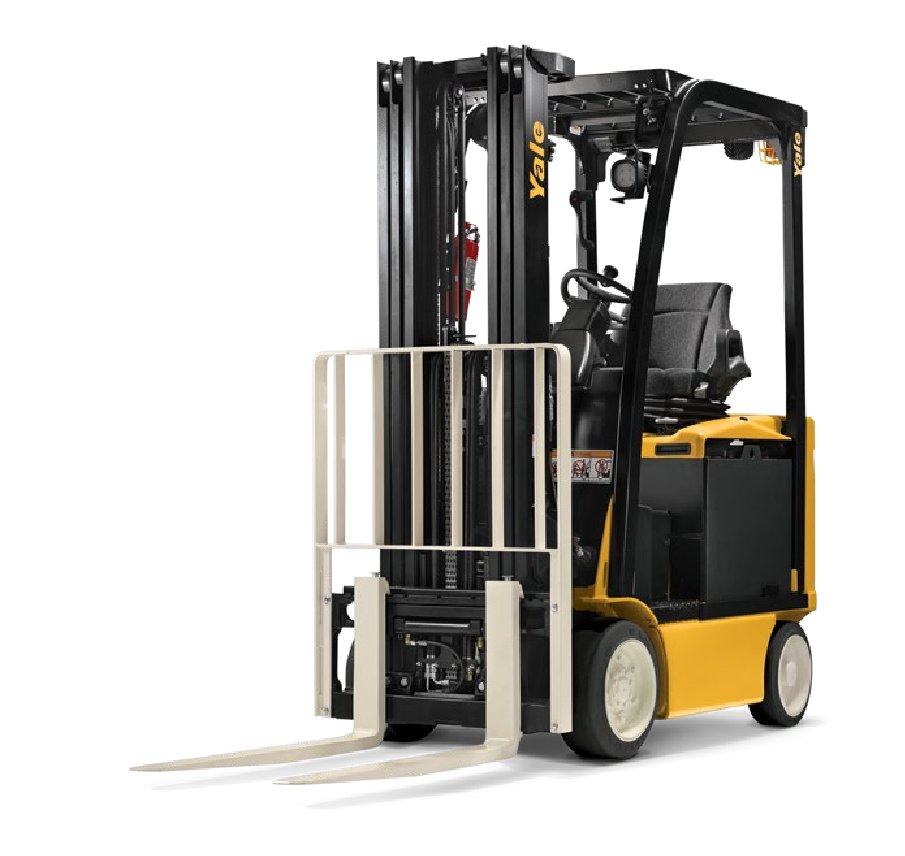

Yale ERC040VA Specs
Quick-reference specifications for the Yale ERC040VA forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 4000 lb1814 kg
Performance 8 specs
| Rated Capacity | 4000 lb (1814 kg) |
|---|---|
| Load Center | 24 in (610 mm) |
| Mast Tilt Std Opt | 5F / 5B 10F / 5B degrees |
| Outside Turning Radius | 66.6 in (1692 mm) |
| Lower Speed Std 2 Stg LFL Mast NL / RL | 93 / 100 ft/min (0.47 / 0.51 m/sec) |
| Lower Speed Opt 2 Stg FFL Mast NL / RL | 73 / 91 ft/min (0.37 / 0.46 m/sec) |
| Lower Speed Opt 3 Stg FFL Mast NL / RL | 81 / 94 ft/min (0.41 / 0.48 m/sec) |
| Brake Method of Control Service / Parking | Hydraulic / Mechanical |
Dimensions 16 specs
| Tire Type – Cushion, Solid, Pneumatic, etc. Drive / Steer | Cushion / Cushion |
|---|---|
| Tire Size Std Drive / Steer | 18 x 7 x 12.1 / 15 x 5 x 11.25 in |
| Tread – Drive Center of Tires Nar / Int / Wide 6″ / Wide 7″ | N/A / 31.8 / N/A / 35.7 in (N/A / 808 / N/A / 906 mm) |
| Tread – Steer Center of Tires | 32.4 in (822 mm) |
| Mast – Lowered Height Std Mast | 82 in (2080 mm) |
| Mast – Extended Height Std Mast with / without LBR | 176 / 150 in (4455 / 3806 mm) |
| Overhead Guard Height Std & DIR / Opt Grid / Flat Plate | 88.5 / 86.5 / 83.5 in (2248 / 2197 / 2121 mm) |
| Tow Pin Height Vertical Center of Pin | 9.1 in (232 mm) |
| Overall Width Nar / Int / Wide 6″ / Wide 7″ Tread | 38.8 / 42.7 in (986 / 1084 mm) |
| Forks Thickness x Width x Length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground Clearance Lowest Point NL / RL | 3.5 / 3.3 in (90 / 84 mm) |
| Ground Clearance Center of Truck NL / RL | 3.9 / 3.6 in (98 / 92 mm) |
| Load Distance Center of Wheel to Face of Forks | 14.2 in (360 mm) |
| Length to Face of Forks Chassis Length | 77.5 in (1968 mm) |
| Wheelbase | 48 in (1220 mm) |
| Right Angle Stack | 128.7 in (3270 mm) |
Power / Engine 6 specs
| Floor to Top of Battery Rollers | 17.1 in (435 mm) |
|---|---|
| Battery Compartment Height Std / Battery Rollers | 24 / 23.5 in (610 / 597 mm) |
| Battery Compartment Width UL Classification “E” / “EE” | 35.8 / 35.6 in (909 / 904 mm) |
| Battery Compartment Length | 27.6 in (700 mm) |
| Truck Weight Without Battery NL | 5770 lb (2617 kg) |
| Battery Type | Lead Acid or Lithium-Ion |
