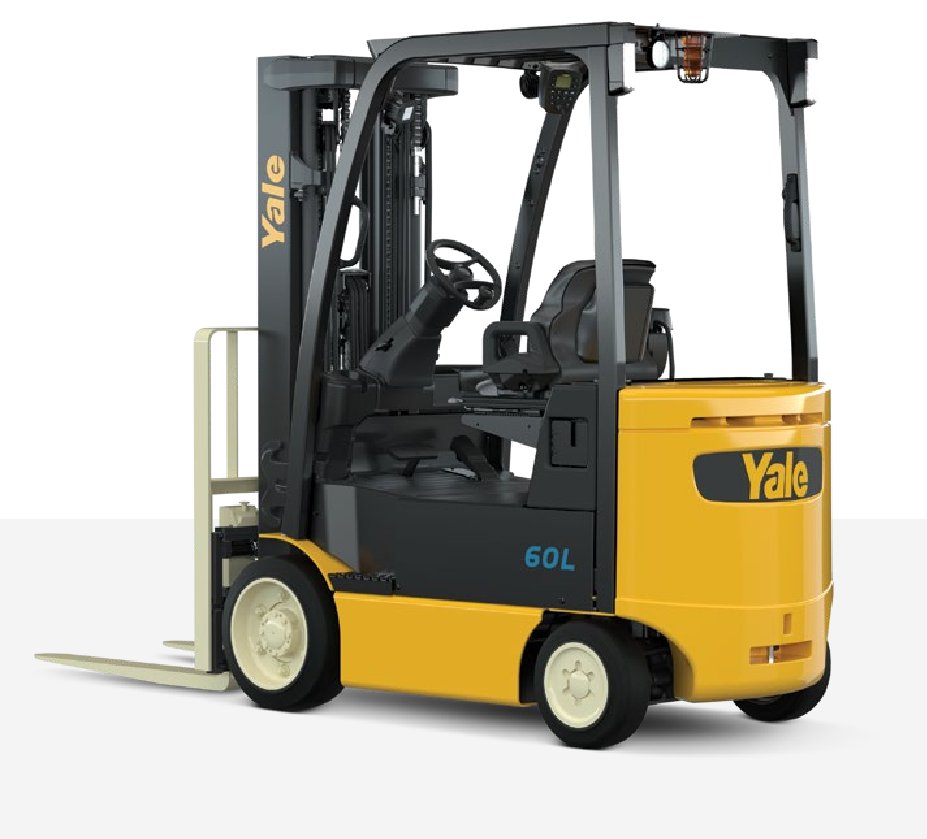

Yale ERC050VGL Specs
Quick-reference specifications for the Yale ERC050VGL forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 5000 lb2268 kg
- Gradeability – 5 minute rating NL/RL
- 39/33 %
Performance 15 specs
| Rated capacity | 5000 lb (2268 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Tread – Tires Std Dr/Wide Dr/Steer | 35.1/41.9/37 in (892/1064/940 mm) |
| Mast tilt – Std | 5F5B degrees |
| Outside turning radius | 74.2 in (1884 mm) |
| Travel speed – Extended shift OFF NL/RL | 12.3/12.5 mph (19.8/20.1 km/h) |
| Travel speed – Extended shift ON NL/RL | 12.2/12.2 mph (19.7/19.7 km/h) |
| Lift speed – Std 2-stg FFL mast NL/RL | 142/96 ft/min (0.72/0.49 m/sec) |
| Lift speed – Opt 2-stg FFL mast NL/RL | 130/93 ft/min (0.66/0.47 m/sec) |
| Lift speed – Opt 3-stg FFL mast NL/RL | 134/94 ft/min (0.68/0.48 m/sec) |
| Lift speed – Opt 4-stg FFL mast NL/RL | 136/94 ft/min (0.69/0.48 m/sec) |
| Gradeability – 5 minute rating NL/RL | 39/33 % |
| Gradeability – 60 minute rating NL/RL | 32/19 % |
| Brake – Method of control – Service/parking | Hydraulic / mechanical |
| Sound level – Measured per ANSI B56.11.5 | 65 dB (A) |
Dimensions 13 specs
| Tire type – Drive/steer | Cushion/ Cushion |
|---|---|
| Mast – lowered height – Std mast | 83 in (2085 mm) |
| Tow pin height – Vertical center of pin | 11 in (280 mm) |
| Overall width – Standard tread/wide tread | 42.1/48.9 in (1070/1242 mm) |
| Forks – Thickness x width x length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground clearance – Lowest point NL/RL | 3.6/3.3 in (91/85 mm) |
| Ground clearance – Center of truck NL/RL | 3.9/3.6 in (98/92 mm) |
| Load distance – Center of wheel to face of forks | 15.4 in (390 mm) |
| Length to face of forks – Chassis length | 84.3 in (2143 mm) |
| Wheelbase | 54.2 in (1377 mm) |
| Right angle stack | 137.5 in (3493 mm) |
| Step height | 18.7 in (475 mm) |
| Floor height – Lowest point | 27.4 in (696 mm) |
Weight 1 spec
| Truck weight – NL | 9180 lb (4170 kg) |
|---|
Power / Engine 5 specs
| Power type | Electric |
|---|---|
| Battery – Type | Lithium-ion |
| Battery – Volts | 80 |
| Traction motor – 60 minute rating | 31.6 hp (23.6 kW) |
| Traction motor – Type/control method | AC / transistor |
Hydraulics / Fluids 2 specs
| Pump motor – 15% rating | 32.2 hp (24 kW) |
|---|---|
| Attachment relief pressure | 2250 psi (155 bar) |
