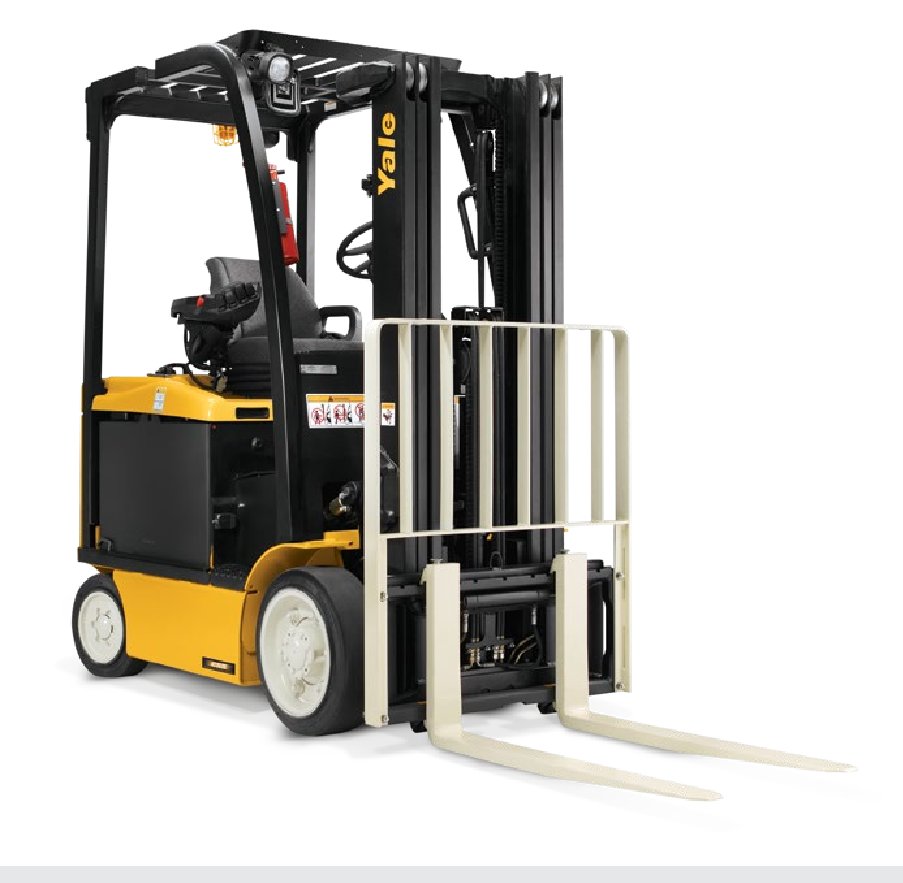

Yale ERC045VG Specs
Quick-reference specifications for the Yale ERC045VG forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 4500 lb2041 kg
Performance 4 specs
| Rated Capacity | 4500 lb (2041 kg) |
|---|---|
| Load Center | 24 in (610 mm) |
| Brake Method of Control Service/Parking | Hydraulic/Mechanical |
| Brake Method of Operation Service/Parking | Foot/Foot |
Dimensions 13 specs
| Tire Type – Cushion, Solid, Pneumatic, etc. Drive/Steer | Cushion/Cushion |
|---|---|
| Tire Size Drive/Steer | 21 x 7 x 15 /16 x 5 x 10.5 in |
| Tread ¢ Tires Std Dr/Wide Dr/Steer | 35.1/41.9/37 in (892/1064/940 mm) |
| Mast – Lowered Height Std Mast | 83 in (2085 mm) |
| Mast – Extended Height Std Mast with/without LBR | 174/148 in (4415/3740 mm) |
| Tow Pin Height Vertical Center of Pin | 11 in (280 mm) |
| Overall Width Standard Tread/Wide Tread | 42.1/48.9 in (1070/1242 mm) |
| Forks Thickness x Width x Length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground Clearance Lowest Point NL/RL | 3.6/3.3 in (91/85 mm) |
| Ground Clearance Center of Truck NL/RL | 3.9/3.6 in (98/92 mm) |
| Load Distance Center of Wheel to Face of Forks | 15.4 in (390 mm) |
| Step Height | 18.7 in (475 mm) |
| Floor Height Lowest Point | 30.4 in (772 mm) |
Power / Engine 6 specs
| Floor to Top of Battery Rollers | 17.2 in (436 mm) |
|---|---|
| Battery Compartment Height Without/With Battery Rollers | 23.9/23.3 in (607/593 mm) |
| Battery Compartment Width | 39.1 in (992 mm) |
| Truck Weight Without Battery NL | 6620 lb (3003 kg) |
| Battery Type | Lead Acid or Lithium-Ion |
| Traction Motor Type/Control Method | AC/Transistor |
Hydraulics / Fluids 3 specs
| Pump Motor Type/Control Method | AC/Transistor |
|---|---|
| Attachment Relief Pressure | 2250 psi (155 bar) |
| Auxiliary Oil Flow 3rd and 4th Function | 11 gal/min (40 l/min) |
