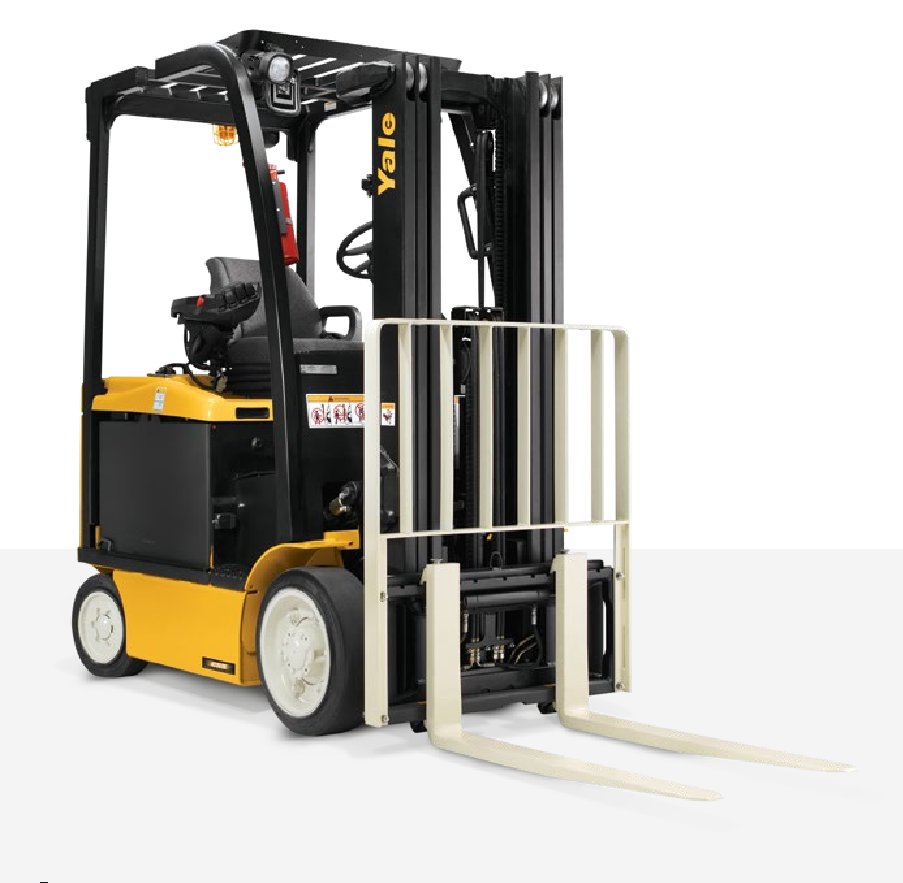

Yale ERC050VG Specs
Quick-reference specifications for the Yale ERC050VG forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height (2-stage mast)
- 125 in3,175 mm
- Gradeability – Full Load
- 20%
Performance 12 specs
| Load Capacity | 5,000 lb (2,268 kg) |
|---|---|
| Load Center | 24 in (610 mm) |
| Lifting Speed – Full Load (2-stage mast) | 55 ft/min |
| Lifting Speed – Full Load (4-stage mast) | 57 ft/min |
| Lowering Speed – Full Load (2-stage mast) | 112 ft/min |
| Lowering Speed – Full Load (4-stage mast) | 91 ft/min |
| Gradeability – Full Load | 20% |
| Turning Radius (outside) | 69.2 in (1,757 mm) |
| Battery Voltage Options | 36 V, 48 V, 80 V |
| Drive Motor | 24.7 hp |
| Traction Motor (from European spec) | 23.6 kW |
| Hoist Motor (from European spec) | 24 kW |
Dimensions 16 specs
| Length Overall | 7 ft 0 in (2,134 mm) |
|---|---|
| Width Overall | 4 ft 1 in (1,242 mm) |
| Height Overall (mast lowered) | 7 ft 0 in (2,085 mm) |
| Length to Fork Face | 80.3 in (2,040 mm) |
| Maximum Lift Height (2-stage mast) | 125 in (3,175 mm) |
| Maximum Lift Height (3-stage mast) | 189 in (4,800 mm) |
| Overhead Guard Height – Standard | 88.5 in (2,248 mm) |
| Overhead Guard Height – Optional | 86.5 in (2,197 mm) |
| Overhead Guard Height – Optional flat plate | 84.1 in (2,137 mm) |
| Wheelbase | 48.4 in (1,230 mm) |
| Underclearance – Minimum (mast) | 3.6 in (91.4 mm) |
| Fork Size (Thickness x Width x Length) | 1.6 x 3.9 x 42 in (40 x 100 x 1,067 mm) |
| Tilt Range (forward/backward) – Standard | 5F/5B degrees |
| Tilt Range (forward/backward) – Optional | 10F/5B degrees |
| Front Tire Size | 21x7x15 |
| Rear Tire Size | 16x5x10.5 |
Weight 4 specs
| Total Weight (with battery) | 7,270 lb (3,298 kg) |
|---|---|
| Total Weight (without battery) | 7,030 lb (3,189 kg) |
| Weight Distribution – Full Load (Front/Rear) | 12,907 lb / 2,414 lb |
| Battery Weight | 7,275 lb (3.3 t) |
Power / Engine 2 specs
| Drive Motor | 24.7 hp (18.4 kW) |
|---|---|
| Battery Connector Cable Length | 20 in (508 mm) |
Hydraulics / Fluids 6 specs
| Pump motor | 15% Rating |
|---|---|
| System Relief Pressure | 20.6 MPa (2,987.8 psi) |
| Max Peak Pressure | 24.5 MPa (3,553.4 psi) |
| Steering System – Oil Temperature | 122 to 149°F (50 to 65°C) |
| Steering Relief Pressure | 11.0 ± 0.3 MPa (1,595.4 ± 43.5 psi) |
| Steering Cylinder Stroke | 6.6 in (169.2 mm) |
